High-speed scan printing with built-in peeling, instant scanning, and pasting for efficient handling of incoming goods, returns, exchanges, and damaged labels, ensuring improved labeling speed and accuracy.
Support 1D/2D codes scanning and printing, effortlessly replacing damaged or creased labels with greater speed and accuracy.
Equipped with an Octa-core 2.45GHz Android terminal and a 5.7- inch large screen display for seamless and convenient operation.
Adaptable to labels with widths ranging from 30mm to 80mm, meets the demands of printing labels of different sizes in various scenarios.
The removable 32.4Wh battery delivers long-lasting working hours and easy charging with a Type-C port.
Support both forward and reverse supply roll, easy installation and swift paper replacement.
Summary

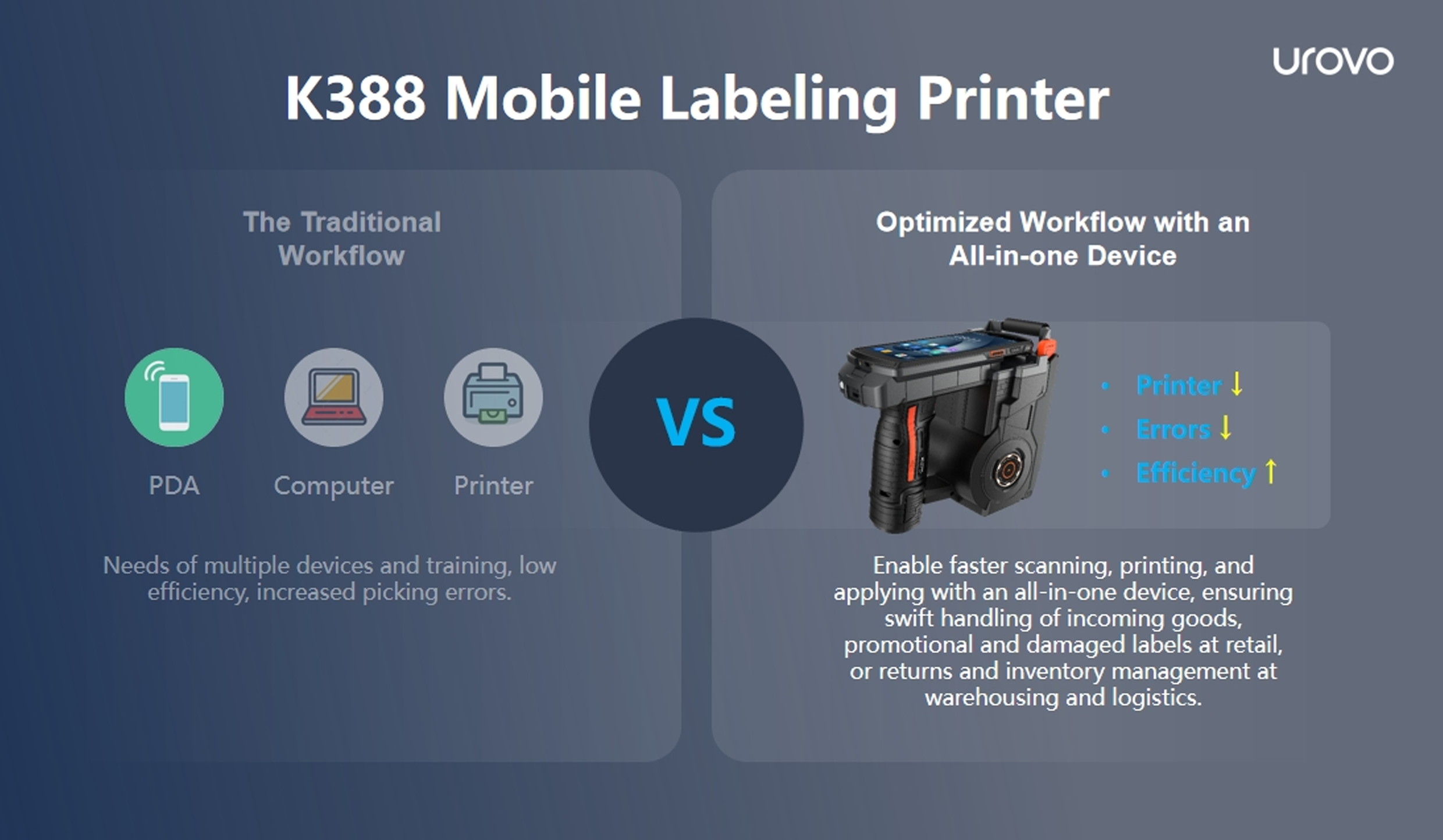

Optimized Workflow with an All-in-one Device
Enable faster scanning, printing, and applying with an all-in-one device, ensuring swift handling of incoming goods, promotional and damaged labels at retail, or returns and inventory management at warehousing and logistics.
Fast and AccurateÂ
1.5-second quick labeling, with a speed of up to 126 mm/s, ensures rapid and efficient operation, saving time and increasing productivity.
High-Capacity Removable Battery & Hot-swap
The removable 32.4Wh battery delivers 18-20 working hours and supports hot-swap technology for uninterrupted operation without powering off. Supports two charging methods for enhanced flexibility and convenience.
Large Paper Compartment Design
One touch-lid opening: Easy installation and quick paper replacement.
Compatible with label widths from 30mm to 80mm.
Supports label rolls with both forward and reverse insertion.
Ergonomic Design
The gun-shaped structure offers a comfortable, anti-slip grip, while the mid-balance design minimizes wrist fatigue, ensuring ease of use.
Expansive View with Large Screen
Featuring a 5.7-inch fully bonded TFT color screen, this device offers ample display area, allowing users to access more information at a glance.
Total Investment in Hardware Decrease
All-in-one device K388S cost is cheaper compared with a seperate PDA+Labelling machine+printer cumulative cost.
Device Management Cost Decrease
All-in-one device K388S can be bound under only one MDM platform for integrated management, to decrease device management costs.
Advantage of Product Selection
One-time product selection, without the need for multiple contacting. Multi-vendor for selection improves efficiency.
Advantage of Software Integration, Adaptation
All-in-one device to reduce software integration, adaptation workload.
Advantage of Daily Use of Management
Only need to manage one device. Advantages of charging and integration management etc, are obvious.
Advantage of After-sales Maintenance Cost
All-in-one device K388S from one manufacturer, optimize maintenance costs
Ideal For Multiple Scenarios
Warehousing Coding
Logistics Sorting
Quality Inspection
Production Reporting
Specifications
CPU
Octa-core 2.45GHz
OS
Android 11
Memory
4GB+64GB
Display
5.7 in display ,720*1440
Scanning
Professional Scanning Heads,support international standard 1D/2D barcodes
Battery: 32.4Wh(3000mAh)/10.8V rechargeable lithium-ion battery
Charging: Charged directly or through the battery
Inches per charge: Up to 200 meters(12.5% black printing)
Adapter: 5V2A
Environmental
Working temperature:5℃~+40℃
Storage temperature:-20℃~+50℃
Operating humidity (relative humidity):5%~90%
Dimensions
198mm*105mm*170mm
Weight: (without battery and supply rolls): 772g/ with Battery: 946g
Printing
Print method: Thermal dircet
Print width: 30mm-80mm
Supply roll diameter: ≤82mm
Supply roll thickness: 50~180μm
Printer life: 100km (12.5% black printing or below) per point: 100 million pulses (25℃)
Command set: CPCL, ZPL, EPL, TSPL, ESC-POS (optional)
Label positioning: Penetrative
Cover opening: One-touch opening
Paper removal detection: Proximity sensor (optional)
Error detection: Paper out, low battery, open cover, peeled paper not removed(optional proximity sensor)
