Specifications

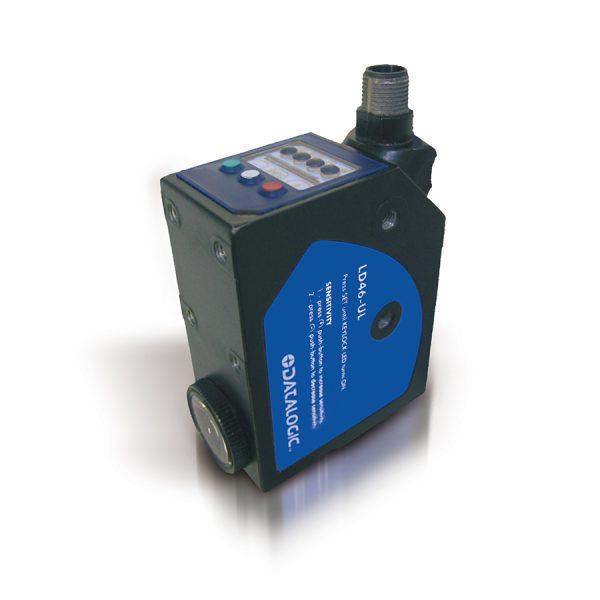

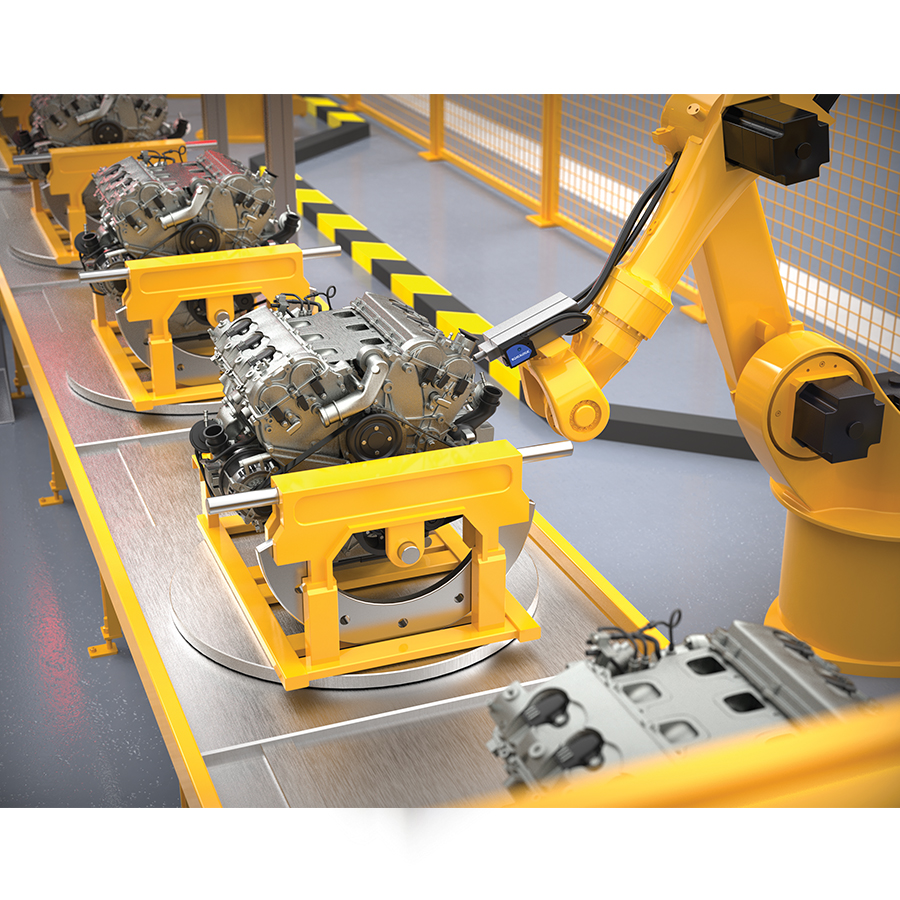

LD46

• Luminescence sensor:
  10…20 mm (LD46-UL-715)
  20…40 mm (LD46-UL-755)
  30…50 mm (LD46-UL-735)
• Spot dimension:
  2×8 mm at 10 mm
  3×11 mm at 24 mm
  4×15 mm at 50 mm
• Switching frequency:
  2 kHz
• Response Time:
  250 μs
• Light emission:
  UV-HP LED
• Setting:
  push buttons
• Power supply:
  Vdc – 15…30 V
  Vac
  Vac/dc
• Output:
  PNP
  NPN
  NPN/PNP •
  relay
  other – 0…5 V Analog output
• Connection:
  cable
  connector •
  pig-tail
• Approximate dimensions (mm):
  31x81x58
• Housing material:
  aluminium
• Mechanical protection:
  IP67

TECHNICAL DATA

• Power supply:
  15 … 30 Vdc (limit values)
• Ripple:
  2 Vpp max.
• Consumption (output current excluded):
  50 mA max. at 24 Vdc
• Light emission:
  UV LED 375 nm
• Indicators:
  yellow OUTPUT LED
  green READY LED
  orange DELAY LED and KEYLOCK LED
  5-segment bargraph
• Output:
  PNP/NPN; analog output
• Output current:
  100 mA max.
• Saturation voltage:
  2 V max.
• Response time:
  250 μs
• Switching frequency:
  2 kHz
• Connection:
  M12 5-pole connector
• Dielectric strength:
  500 Vac, 1 min between electronics and housing
• Insulating resistance:
  >20 MΩ, 500 Vdc between electronics and housing
• Electrical protection:
  class 2, double insulation
• Mechanical protection:
  IP67
• Ambient light rejection:
  according to EN 60947-5-2
• Vibrations:
  0,5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
• Shock resistance:
  11 ms (30 G) 6 shock for every axis (EN60068-2-27)
• Minimum spot dimension:
  2 x 8 mm at 10 mm (mod. LD46-UL-715)
  3×11 mm at 24 mm (mod. LD46-UL-755)
  4×15 mm at 50 mm (mod. LD46-UL-735)
• Housing material:
  aluminium
• Lens material:
  glass
• Operating temperature:
  -10 … 55 °C
• Storage temperature:
  -20 … 70 °C
• Weight:
  180 g max.
