Datalogic Matrix 210N™ DL-Code 2D Fixed Imager Barcode Scanner

The unrivalled decoding libraries running on the new high speed Datalogic Matrix 210N DL-Code hardware platform deliver superior reading robustness and impressive decoding rates, supporting high system throughput and so improving the efficiency of productions.

DATALOGIC MATRIX 210N™ DL-CODE 2D FIXED IMAGER BARCODE SCANNER

DATALOGIC MATRIX 210N™ DL-CODE 2D FIXED IMAGER BARCODE SCANNER REFERENCE GUIDE

Description

FEATURED

Image Based ID barcode reader
High performance on dynamic reading applications
Direct and 90° window models for smart mounting
Outstanding decoding capability on 1D, 2D, Stacked and Postal symbologies
X-PRESS™ for easy and intuitive setup
Optical aiming system
ID-NET™ embedded high speed connectivity
Region Of Interest Windowing for higher frame rate
Reading Indicators: Beeper, Datalogic ‘Green Spot’ Good Read Feedback, Good Read LED
Run Time Self Tuning for higher flexibility
10 to 30Vdc power supply
Region Of Interest Windowing for higher frame rate
Integrated Ethernet barcode reader
Ultra compact dimensions
USB connectivity
Vertical or Horizontal models
IP65 (NEMA 4) water & dust resistance

Summary

EXTREME READING PERFORMANCE

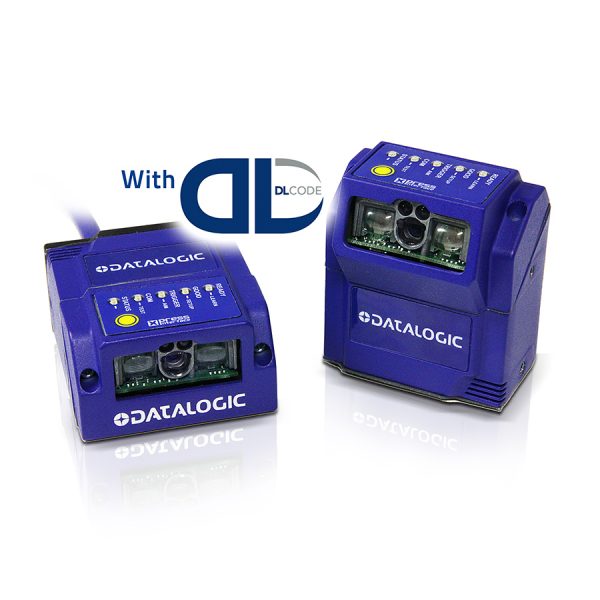

The Datalogic Matrix 210N™ DL-Code is the new Datalogic 2D reader offering extreme reading performance and integrated Ethernet in a ultra-compact housing.

Thanks to the WVGA image sensor, capturing up to 60 frames per second and to the powerful internal illuminator, Matrix 210N™offer extreme dynamic reading capability.

The unrivalled decoding libraries running on the new high speed hardware platform deliver superior reading robustness and impressive decoding rates, supporting high system throughput and so improving the efficiency of productions.

ON-BAORD ETHERNET

The on-board Ethernet makes effective the transfer of both reading data and captured images, that can be easily and quickly uploaded on external PCs or servers, simply for storage or also for offline process analysis.

COMPACT & VERSATILE

Compactness and straight – 90° reading window allows a perfect contact reading capability and a simple mechanical integration into narrow spaces. Installation and maintenance are extremely easy thanks to the X-PRESS™ Interface with five LED bar graph and the multi-function key for immediate access to relevant functions such as Aiming, Setup, Automatic Learning, Test Mode.

DATALOGIC PATENTED ‘GREEN SPOT’ TECHNOLOGY

The Green Spot – projected onto the scanned object – provides easy and real-time feedback of the reading status without any additional supervisory software.

SUITABLE APPLICATIONS

DPM reading and verification
Electronic PCB assembly process
Media device traceability
Pharmaceutical manufacturing and packaging
Food & Beverage
Print & Apply systems
Access Control systems

Specifications

DECODING CAPABILITY

1D / Linear Codes:
1D Stacked: Interleave 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode
GS1 DATABAR (RSS) family, and many more
2D Codes:
Data Matrix, QR Code, Maxicode, Aztec, Microglyph
Postal Codes:
Postal: Royal Mail, Japan Post, Planet, Postnet and many more
Code Quality Verification:
ISO/IEC 16022 (Data Matrix), ISO/IEC 18004 (QR Code)
ISO/IEC 15415 (Print quality test specifications for 2D codes)
ISO/IEC 15416 (Print quality test specifications for linear codes)
AS9132A (Data Matrix Quality Requirements for Parts Marking)
AIM DPM (Global Direct Part Mark Quality Guideline)

CONNECTIVITY SPECIFICATIONS

Communication Interfaces:
RS232 + RS232/RS422/RS485 up to 115.2 Kbit/s
ID-NET™ port up to 1 Mbps, USB 2.0 up to 921.6 Kbit/s
Connectivity Modes:
Pass Through, Master/Slave, Multiplexer, USB Point To Point
Digital Inputs:
Two SW programmable, optocoupled and polarity insensitive
Digital Outputs:
Two SW programmable opto coupled
Device Programming:
X-PRESS™ Human Machine Interface, Windows™ based SW (VisiSet™) via serial or USB link
User Interface:
Serial Host Mode Programming sequences
X-PRESS™ Human Machine Interface, Beeper, Programmable Push Button,
LEDs (Status, Com, Trigger, Good, Ready, Power On, Good read Spot)

PHYSICAL CHARACTERISTICS

Dimensions:
Matrix 210 21x-1xx: 50 x 25 x 45 mm (1.97 x 0.98 x 1.77 in)
Matrix 210 21x-0xx: 54 x 32 x 45 mm (2.12 x 1.26 x 1.77 in)
Weight:
204 g. (7.2 oz.) with cable
Case Material:
Aluminum alloy
Operating Temperature:
0° to 50° C (32 to 122 °F)
Storage Temperature:
-20 to 70 °C (-4 to 158 °F)
Humidity:
90% non condensing
Protection Class:
IP65
Esd safe:
YES, with ESD Safe front cover accessory
Yag laser protection:
YES, with YAG cut filter accessory
Optical Features:
WVGA (780 x 480) CMOS global shutter
Frame Rate:
60 frame/s
Reading Window:
Direct or 90°
Reading Angles:
Max. Pitch: ± 35°; Tilt: 0-360°
Power Supply:
Matrix 210 21x-x0x: 10 to 30 VDC
Matrix 210 21x-x2x: 5 VDC
Power Consumption:
0.4 to 0.15 A, 4.5 W max

READING CHARACTERISTICS

Models
MATRIX 210N 211-xxx NEAR
Focus Distance
45 (1.77)
Field of view @ Focus distance
35 x 22
(1.38 x 0.87)
PPI(Pix per element) @Focus distance
545
TYP. 1D and stacked code resolution
0.10 (4)
2D Code resolution
Max.Typ.mm (mils)
0.13(5)0.19 (7.5)mm (in)
Reading distance
42(1.65)Min. mm (in)
36(1.42)Min. mm (in)
53(2.08)Max. mm(in)
61(2.40)Max. mm(in)
Models
MATRIX 210N 212-xxx MEDIUM
Focus Distance
65 (2.56)
Field of view @ Focus distance
50 x 32
(1.97 x 1.26)
PPI(Pix per element) @Focus distance
380
TYP. 1D and stacked code resolution
0.15 (6)
2D Code resolution
Max.Typ.mm (mils)
0.19(7.5)0.25(10)mm (in)
Reading distance
54(2.13)Min. mm (in)
47(1.85)Min. mm (in)
90(3.54)Max. mm(in)
101(3.97)Max. mm(in)
Models
MATRIX 210N 213-xxx FAR
Focus Distance
105 (4.13)
Field of view @ Focus distance
80 x 50
(3.15 x 1.97)
PPI(Pix per element) @Focus distance
238
TYP. 1D and stacked code resolution
0.20 (8)
2D Code resolution
Max.Typ.)mm (mils)
0.25(10)0.38(15)mm (in)
Reading distance
85(3.35)Min. mm (in)
70(2.76)Min. mm (in)
135(5.31)Max. mm(in)
192(7.55)Max. mm(in)

Software Adjustable Focus Models

Product – Scanner Only (2D)

Scanner Device only, additional accessories are required.

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information.

Connection boxes (cbox) / Controllers

Required on all fixed mount scanning unless Quicklink Series connections are used. Please specify additional outputs if required and adapters.

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes.

Power Supplies/Cords

Additional Accessory – only required for certain cable sets.

Websentinel Software

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and presents the information flow as visual onscreen information. It also stores this information in a database and, periodically or on demand, produces performance, diagnostic, and tracking reports.
