Specifications

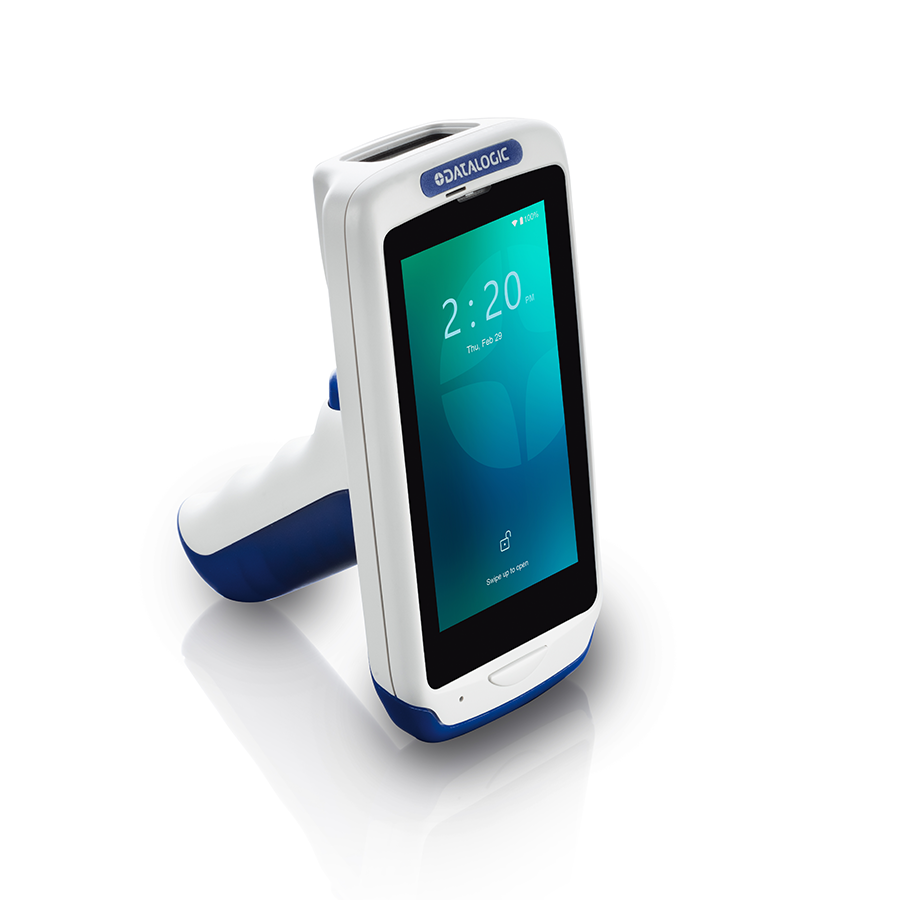

Joya Touch 22 Technical Specifications

Wireless Communications

• Local Area Network (WLAN):
  IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc
  (for indoor localization); IPv4, IPv6
  2×2 MU-MIMO for higher throughput and coverage
  Frequency range: country dependent, typically 2.4 GHz
  and 5 GHz bands
  Security standards: WPA/WPA2/WPA3 Personal and
  Enterprise 802.1x EAP: PEAP/MSCHAPv2, PEAP/GTC,
  TLS, TTLS/PAP, TTLS/MSCHAP, TTLS/MSCHAPv2, TTLS/
  GTC, PWD, TLS (WPA3 SuiteB/192-bit)
• Personal Area Network(WPAN):
  Class 2, Bluetooth V5.1, with BR/EDR and Bluetooth Low
  Energy (BLE)
• NFC Communication:
  NFC communication between device and cradle

Decoding Capability

• 1D / Linear Codes:
  Auto discriminates all standard 1D codes including GS1
  DataBar™ linear codes.
• 2D Codes:
  Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
  Micro QR Code; QR Code; Dot Code
• Postal Codes:
  Australian Post; British Post; China Post; IMB; Japanese
  Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
  Mail Code (RM4SCC)
• Stacked Codes:
  EAN/JAN Composites; GS1 DataBar Composites;
  GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
  GS1 DataBar Stacked Omnidirectional; MacroPDF;
  MicroPDF417; PDF417; UPC A/E Composites
• Digital Watermark Codes:
  Digimarc Barcode (Red LED illumination model)

Electrical

• Battery:
  Replaceable battery pack with rechargeable Li-Ion
  batteries; 3.6 V; 3,300 mAh (12 Watt-hours)
• Wireless Charging:
  Two charging options: Fast charging or Standard charging

Environmental

• Drop Resistance:
  Withstands repeated drops from 1.2 m / 4.0 ft onto steel
  or concrete according to IEC 60068-2-32 method 1
• Temperature:
  Operating: -10 to 50 ºC / 14 to 122 ºF
• Tumble Specification:
  1,000 0.5 m / 1.64 ft tumbles at room temperature
  according to IEC 60068-2-232 method 2

Interfaces

• Interfaces:
  USB-C: High Speed USB 2.0 Host and Client

User Interfaces

• SoftSpot Technology:
  Virtual trigger/scan key
• Triggers:
  Pistol-grip (pistol variant only); motion trigger
• Vibration:
  Software programmable

Images Capture

• Black and White via Scan Engine:
  Auto contrast and brightness; Auto noise removal;
  Exposure and illumination controls

Sensors

• Accelerometer:
  3-Axis accelerometer
• ToF:
  Automatic scanning feature ‘Presentation mode’
• Gyroscope:
  3-axis gyroscope

Physical Characteristics

• Color Customization:
  Top case and battery cover (both handheld and pistolgrip
  models) and Scan Trigger (pistol-grip models) are
  available in various standard or custom colors
• Colors (Standard):
  Enclosures: Light Grey; Dark Grey and Black;
  Battery Covers: Blue; Red; Green; Orange; Yellow; Light
  Grey and Black
• Display:
  4.3 inch full touch TFT-LCD color display;
  FWVGA: 854 x 480 pixels; 16M colors, LED backlight
• Touch Screen:
  Capacitive, multi-touch, Gorilla® Glass 3 with air gap
• Physical Keys:
  Handheld: Home/scan fully programmable key
  Pistol-Grip: Home/scan fully programmable key;
  Scan Trigger key
• Lighting:
  Software programmable, lights at the bottom of the
  battery cover
• Dimensions:

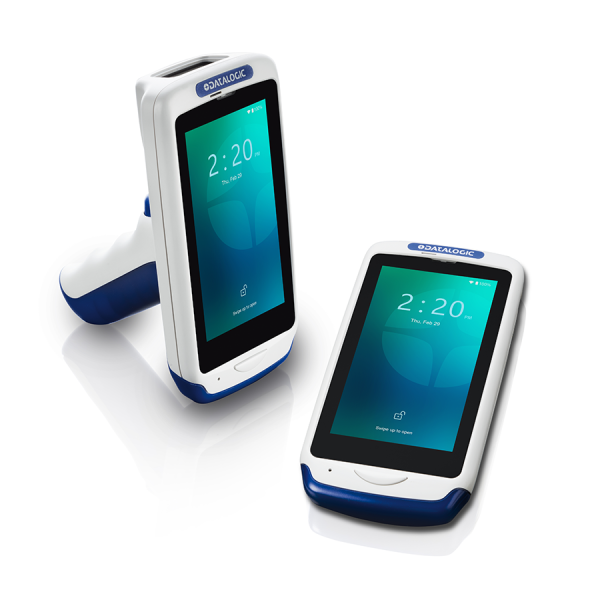

  Handheld: 14.5 x 7.7 x 3.4 cm / 5.7 x 3.0 x 1.3 in
  Pistol-Grip: 14.5 x 7.7 x 11.6 cm / 5.7 x 3.0 x 4.5 in
• Weight:
  Handheld: 285 g / 10.1 oz; Pistol-Grip: 317 g / 11.2 oz

Reading Performance

• Imager Sensor:
  Imager Sensor
• Print Contrast (Minimum):
  25%
• Field of View:
  42°H x 32°V
• Depth of Field:
  4.5 to 42.0 cm / 1.7 to 16.5 in on UPC/EAN 13
• Resolution (Maximum):
  1D Linear: 2.5 mils; Data Matrix: 6 mils; PDF417: 3 mils
• Reading Indicators:
  Loudspeaker (Polyphonic); Datalogic’s ‘Green Spot’
  technology for visual good-read feedback

Safety & Regulatory

• Agency Approvals:
  The product meets necessary safety and regulatory
  approvals for its intended use.
• Environmental Compliance:
  Complies to EU RoHS

Software

• Applications:
  Datalogic launcher as lockdown solution;
  Datalogic Enterprise Browser as lockdown browser
  supporting Javascript SDK;
  Others: Datalogic’s SoftSpot soft Trigger; WiFi Guard;
  Datalogic Logger
• Provisioning:
  San2Deploy Studio; Android Zero-Touch; QR Code Enrollment
• Configuration and Maintenance:
  Scan2Deploy Studio; OEM Config; ProfileManager; Wi-Fi
  QR Code Generator
• Development:
  Datalogic Android SDK; Xamarin SDK; Ionic Cordova
  SDK; React Native SDK; Datalogic Enterprise Browser
  Javascript SDK
• MDM:
  Soti MobiControl; VMWare Airwatch; Ivanti Avalanche;
  42Gears SureMDM; Microsoft Intune

System

• Memory:
  System RAM: 4 GB; System Flash: 32 GB
• CPU:
  Qualcomm® SDA660 System-on-Chip 2.2 GHz
• Operating System:
  Android 11 (Upgradeable to Android 13)

Warranty

• Warranty:
  1-Year Factory Warranty
