Datalogic’s STS320X™ is the first-in-class solution of undisputed reliability for the Tire Industry, offering tire manufacturers complete traceability in all demanding applications along the tire production chain.
Datalogic’s STS320™ is the first-in-class solution of undisputed reliability for the Tire Industry, offering tire manufacturers complete traceability in all demanding applications along the tire production chain.
STS320 delivers outstanding reading performance at the best price/performance ratio because of a superior 2MP sensor (1920 × 1080 pixels 16:9) combined with a powerful dual core processor. In a very compact solution, STS320 achieves an extra-large Field of View (FOV) up to 1250 mm (49”) for large conveyor coverage and a high Depth of Field (DOF) even on high resolution codes of 0.25 mm (10 mils) for extreme application flexibility. STS320 works with conveyor speed up to 1.5 m/s and with reduced minimum gap among tires allowing an increase in overall productivity.

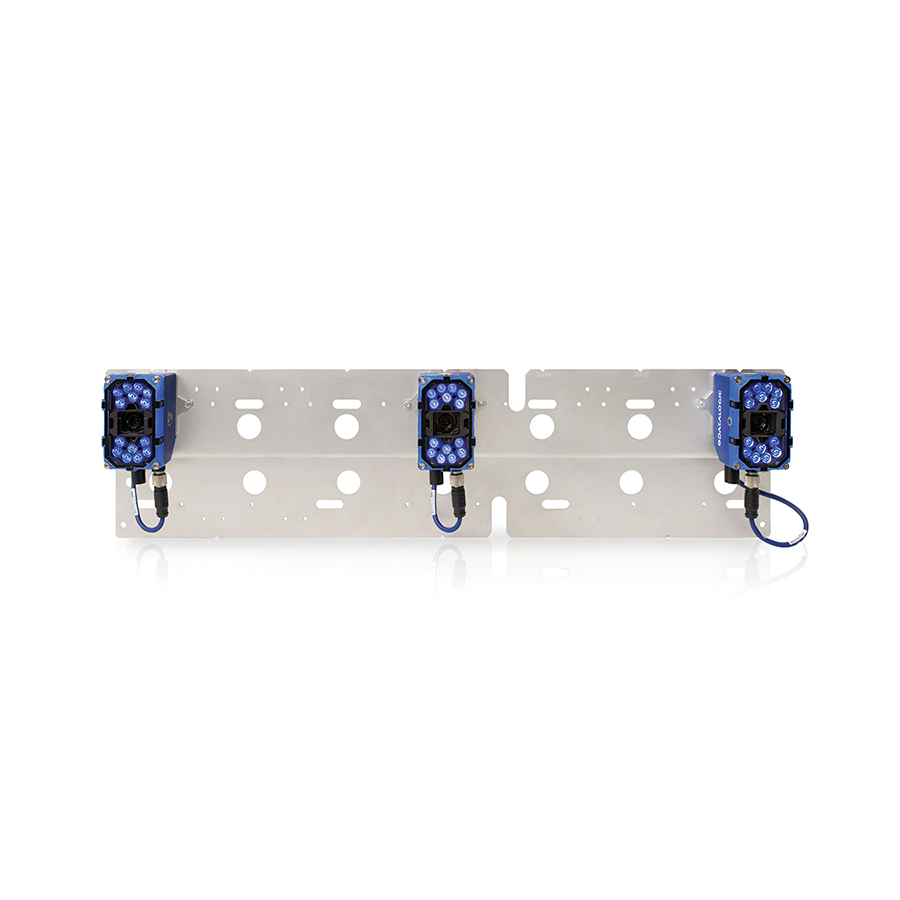

The STS320 is an out-of-the box solution fully pre-assembled, pre-configured and validated in the factory. Together with the self-contained, compact mechanical layout, it makes product handling extremely easy and dramatically reduces installation time. The product configuration is improved by the state-of-the-art DL. CODE™ software common to all Matrix series. The usability is enhanced and simplified by the new cross projection integrated aiming system, ‘Green Spot’ technology, and the X Press HMI.
The STS320 performance analysis is boosted by a new web interface and by the new web Mosaic view that allows the monitoring of all the readers at a glance for easy setup and monitoring through a complete suite of remote diagnostics. The new run-time unreadable code detection identifies the presence of damaged labels and the live high-speed imagesaving based on the new generation FTP file transfer collects the information for post processing quality analysis aiming to optimize productivity. Performance diagnostics are intuitive and magnified from a distance because of the innovative configurable 360-degree multi-color read feedback for ease of use and operation.
The STS320 is simple to fit and to integrate with its full industrial connectivity, compactness, and top industrial grade. Each single reader replacement is quick and easy for reduced system downtime. The new web Device Discovery simplifies the access and monitoring of all readers in the network. The Sulphur gas resistance allows safe installation of the STS320 in the most challenging environment (curing process). Its undisputed robustness offers unrivalled longterm reliability and life cycle, minimum wear and tear.
The STS320 embodies the full set of application requirements of the Tire Industry that makes it the best solution, once again confirming Datalogic’s leadership in the market.
Factory Automation / Manufacturing
Automotive, Tires Manufacturing and Tires Distribution Center
STS320
ATS320
