Specifications

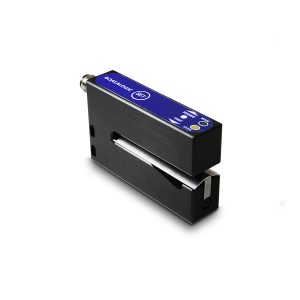

SRX3

• Slot width:
  3 mm
• Slot depth:
  68 mm
• Switching frequency:
  500 hz
• Emission type:
  Ultrasonic 300 Khz
• Setting:
  300 mm
• Power supply:
  12…30 Vdc
• Output:
  PNP
  NPN
• Connection:
  Connector: M12 5-pin
  Connector: M8 4-pin
• Approximate dimensions (mm):
  90 x 55 x 22
• Housing material:
  Aluminium
• Mechanical protection:
  IP54

TECHNICAL DATA

• Minimum pulse time:
  1ms
• Detectable size:
  > 2mm
• Max. tape speed:
  60m/min
• Tape size:
  > 16mm
• Ultrasonic frequency:
  300 Khz

ELECTRICAL DATA

• Power supply:
  12…30 Vdc
• Current consumption:
  < 55mA
• Ripple:
  10%
• Output current:
  250 mA max.
• Output saturation voltage:
  < 1,5V @ 100mA
• Rising time:
  0,8 us max
• Falling time:
  1,6 us max
• Power On delay:
  325 ms
• Response time:
  1ms
• Switching frequency:
  500 hz
• Output:
  PNP / NPN

MECHANICAL DATA

• Connection:
  M12 5 pin
• Operating temperature:
  0 °C … +50 °C
• Storage temperature:
  -25 °C … +75 °C
• Humidity:
  35…85% rH non condensing
• Vibration:
  0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
• Shock resistance:
  11 ms (30 G) 6 shock for every axis (EN60068-2-27)
• Housing material:
  Aluminium
• Protection class:
  IP54
• Weight:
  300g
