SC5000 is an industrial controller designed for high-speed data collection in an ID-NET™ network of Datalogic Automation’s 1D/2D code readers. SC5000 offers high communication performance and connectivity to the most common Fieldbus systems by means of a complete range of optional modules.

DATALOGIC SC5000 DATA-SHEET

Description

FEATURED

  • Industrial controller for multi-side reading stations
  • e-GENIUS™ web-based user interface
  • Display and 5-key keypad for diagnostics and statistics
  • Rugged industrial housing
  • Ultralight and compact design
  • Built-in Ethernet, Ethernet/IP and native Profibus and Profinet models
  • Enables management of systems redundancy and fast scanner replacement in cases of failure
  • Ethernet Bus Connections (EBC) for high-speed data transmission and real-time synchronization

Summary

DESIGNED FOR SPEED

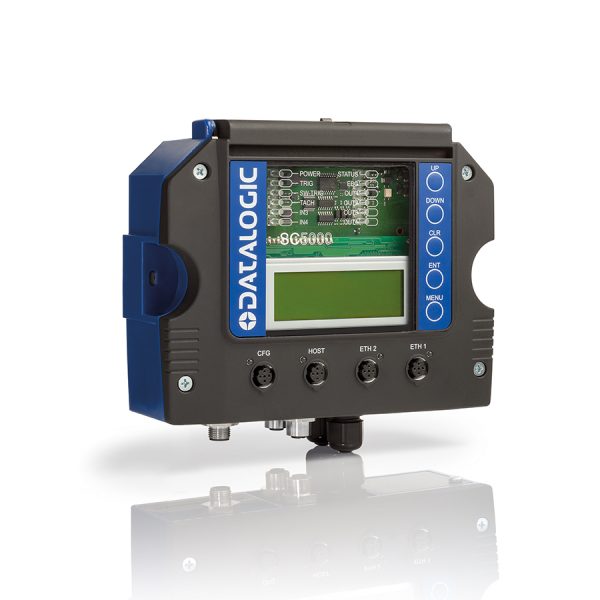

SC5000 is a high performance industrial controller for omnidirectional and multi-side reading tunnels. At a glance it’s a compact box that consists of a front panel with a multiline display, visual indicators, buttons and network connectors, over a body with further connectivity options. The front panel hides underneath the mother board, a removable compact flash for parameters system backup and controller replacement, and the field bus board.

SC5000 enables easy installation of complex tunnels with the ability to integrate laser devices, imagers and dimensioners. Installation and setup are pretty smooth processes thanks to enhanced internal connectivity for device synchronization EBC. Specialized connectors helps to avoid any human mistake about cabling the system and e-GENIUS, the web-based user interface, enables users to manage the configuration by all the popular web-browsers and OS.

The controller provides all the needed tools for quick maintenance of a reading tunnel, monitoring performance and system health in real-time. SC5000 architecture is fully redundant to avoid a single point of failure, this scenario usually consists of two SC5000 connected in a closed ring along with more than one laser device.

ADVANTAGES

  • Increased overall product reliability and easy replacement by means of Compact-Flash memory
  • Easy and simple configuration thanks to Datalogic e-GENIUS, web-based user interface
  • Compatible with DS8110 and DX8210 devices, DM3610 dimensioners and hybrid integration with AV7000/NVS9000
  • No single point of failure thanks to the redundant architecture (double controller, tachometer, photo-eye and closed EBC loop)

SUITABLE APPLICATIONS

  • Sorting for Transportation & Logistics (Express Couriers, Postal applications)
  • Sorting for Distribution (large Logistic/Distribution Centers)
  • Sorting for Baggage Handling Systems

Specifications

ELECTRICAL FEATURES

  • Supply Voltage:
    10 to 30 Vdc (typ. 24 Vdc)
  • Power Consumption:
    0.5 A Max.
  • Communication Interfaces Serial Main (Isolated):
    – RS232: 1200 to 115200 bits/s
    – RS422 full-duplex: 1200 to 115200 bits/s
  • Serial Aux:
    – RS232: 1200 to 115200 bits/s
  • Ethernet (x2) TCP/IP:
    100 Mbit/s
  • EBC Internal Network:
    100 Mbit/s
  • Fieldbus:
    – Profibus (only SC5000-1100 model): PROFIBUS DP application protocol; up to 12 Mb/s
    – Profinet (only SC5000-1200 model): PROFINET-IO application protocol; 100 Mb/s
    – All models: Embedded EtherNet/IP; 100 Mb/s
  • Inputs:
    3 polarity insensitive optocoupled inputs: Trigger, Encoder/Tachometer, IN3,
  • Outputs:
    3 optocoupled outputs
  • Inputs/Outputs:
    1 configurable Input/Output (PNP or NPN polarity insensitive optocoupled input, or optocoupled output)

USER INTERFACE

  • LCD Display:
    4 lines by 20 characters LCD
  • Keypad:
    5 keys
  • LED Indicators:
    POWER STATUS
    TRIG EBC
    SW-TRIG OUT1
    ENC OUT2
    IN3 OUT3
    IN4 OUT4
  • Configuration Modes:
    e-Genius
  • Parameter Storage:
    Non-volatile extractable SD-card

ENVIRONMENT FEATURES

  • Mechanical Dimensions:
    192 x 157 x 74 mm (7.57 x 6.18 x 2.91 in)
  • Weight:
    1.5 kg (3.31 lb)
    * Sealed connectors required:
  • Operating Temperature:
    0° to +50 °C (+32° to +122 °F)
  • Storage Temperature:
    -20° to +70 °C (-4° to +158 °F)
  • Humidity:
    90% non condensing
  • Vibration Resistance:
    14 mm @ 2 to 10 Hz; 1.5 mm @ 13 to 55 Hz; 2 g @ 70-500 Hz; 2 hours on each axis
  • Shock Resistance:
    30 g; 11 ms; 3 shocks on each axis
  • Protection Class:
    IP65

Connection boxes (cbox) / Controllers

Required on all fixed mount scanning unless Quicklink Series connections are used. Please specify additional outputs if required and adapters.

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes.

Power Supplies/Cords

Additional Accessory – only required for certain cable sets.

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request.
