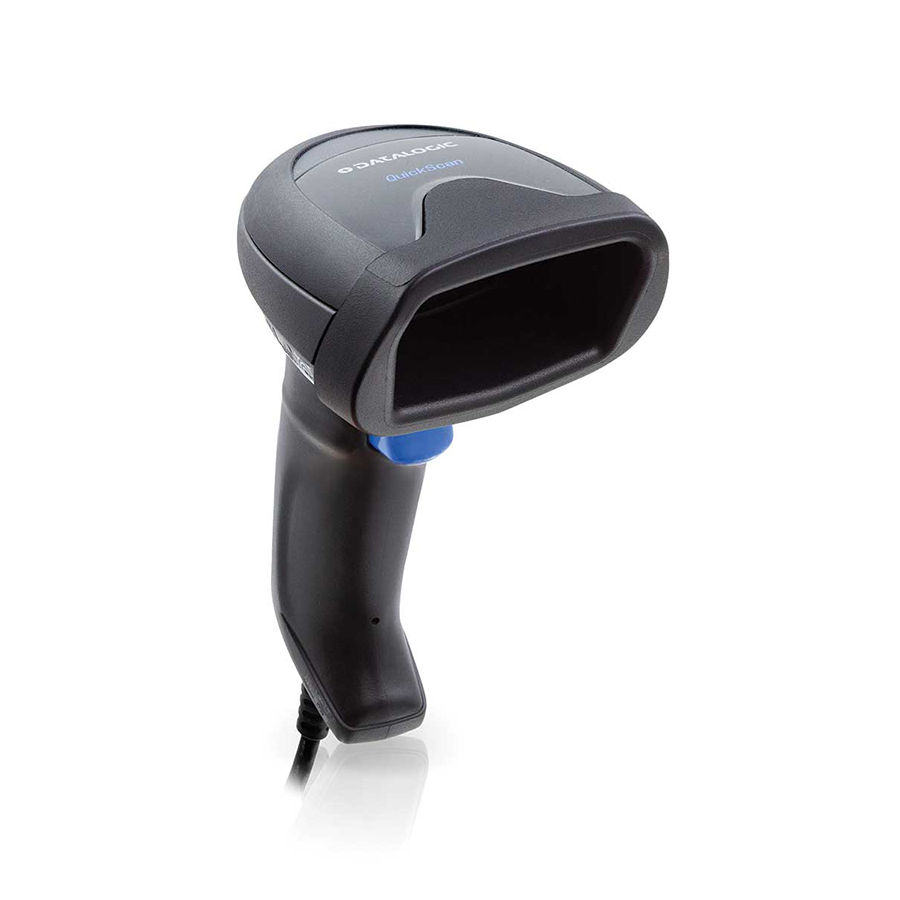

Datalogic Quickscan QW2500 2D Corded Handheld Barcode Scanner

Datalogic Quickscan QW2500 2D Corded Handheld Barcode Scanner - Image 2

Datalogic Quickscan QW2500 2D Corded Handheld Barcode Scanner

Name: Datalogic Quickscan QW2500 2D Corded Handheld Barcode Scanner - DCI Scanning
SKU: QW2500
Availability: InStock

The market trend towards 2D barcode has clearly spread across the whole data capture industry. This is particularly true at retailers’ where POS check-out activities face an increased need for 2D scanning and at the same time rely on reading mobile phone displays and loyalty cards.

Datalogic Quickscan QW2500 2D Barcode Scanner Datasheet

Datalogic Quickscan QW2500 2D Barcode Scanner Reference Guide

Description

FEATURED

Choice of optics between 1 MP for superior scanning and Depth Of Field (QD, QM and QBT) and VGA (QW) for the extra-affordability
Datalogic LED-based technology with extreme precision aiming system
Datalogic’s ‘Green Spot’ technology for superior good-read feedback
Motionix™ patented motion-sensing technology for seamless reading mode transitions
Omnidirectional reading for 1D, 2D, postal codes, stacked and composite bar codes, dot codes and Digital Watermark codes
Choice of Bluetooth 4.0 wireless technology model or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
Multi-interface options: RS-232 / USB / Keyboard Wedge, including USB-C
Aladdin™ 3.0 configurator provides the latest GUI, search engines, and an on-line version that offers the ability to generate programming barcodes to scan directly on a smartphone
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Specifications

QUICKSCAN 2500 SERIES

CORDLESS MODELS COMMUNICATIONS

QuickScan QM2500:
Datalogic STAR Cordless System
Effective Radiated Power: 433.92 MHz < 6.3 mW;
910 MHz < 50 mW; Point-to-Point Configuration;
Radio Frequency: 433.92MHz; 910 MHz; Two Way
Communications; Radio Range (Open Air): 30.0 m / 98 ft
QuicScan QBT2500:
Bluetooth Wireless Technology
Profiles: SPP (Serial Port Profile); Protocol: Bluetooth 4.0
Certified Class 1; Radio Frequency: 2.4 GHz; Radio Range
(Open Air): 50.0 m / 164 ft; Range distances are measured
using the base station. Range with connection to other
Bluetooth peripherals may show different results.
Security: Data Encryption; Scanner Authentication

DECODING CAPABILITY

1D / Linear Codes:
Auto discriminates all standard 1D codes including GS1
DataBar™ linear codes.
2D Codes:
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
Micro QR Code; QR Code; Dot code
Postal Codes:
Australian Post; British Post; China Post; IMB; Japanese Post;
KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes:
EAN/JAN Composites; GS1 DataBar Composites; GS1
DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites
Digital Watermarking:
Digimarc Barcodes (QD2500, QM2500, QBT2500 only)

CORDED MODELS ELECTRICAL

Current:
Operating: < 400 mA @ 5V; Standby/Idle: < 90 mA @ 5V
Input Voltage:
5 VDC

CORDLESS MODELS ELECTRICAL

Battery:
Battery Type: Lithium-Ion: 3250 mAh
Charge Time (Scanner only): Type-C External Power: 3 Hours;
Charge Time (via Cradle): External Power: 4 Hours @ 12 VDC;
Reads per Charge: 115,000
Cradle Indicator LEDs:
Battery Charging (flashing orange or green);
Charge Completed (steady green)
Current:
Charging (Typical): Scanner only: 500mA @ 3.7 V (Operative)
Cradle only (BC2090): 45 mA @ 5 V (Operative)
Input Voltage:
5V+/-5% (Scanner) in Type-C Port
4.5 – 14 VDC +/- 5% (Cradle BC2090)

ENVIRONMENTAL

Ambient Light:
0 – 110,000 lux
Drop Resistance:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Trigger Resistance:
Withstands 10 Mhits
ESD Protection (Air Discharge):
16 kV
Humidity (Non-Condensing):
0 – 95%
Particulate and Water Sealing:
IP52
Temperature:
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F

INTERFACES

Interfaces:
CORDLESS MODELS:
BC2090: USB Type C / USB / RS-232 / Keyboard Wedge Multi-Interface
CORDED MODELS:
QD2590: USB Type C / USB / RS-232 / Keyboard Wedge Multi-Interface
QW2520, QD2520: USB type C / USB only

PHYSICAL CHARACTERISTICS

Colors Available:
QD2500: Black, White; QW2500: Black
Dimensions:
CORDLESS MODELS:
Scanner only: 15.9 x 6.8 x 10.7 cm / 6.2 x 2.7 x 4.2 in
CORDED MODELS:
14.8 x 6.8 x 12.6 cm / 5.8 x 2.7 x 4.96 in
Weight:
145.0 g / 5.1 oz (corded models)
206.5 g / 7.3 oz (cordless models, battery included)

READING PERFORMANCE

Image Capture:
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
Image Sensor:
QD2500, QM2500, QBT2500: 1 Megapixel (1280 x 800 pixels)
QW2500: VGA (640 x 480 pixels)
Light Source:
Aiming: Blue LED emission 468 nm
Illumination: Red LED emission 617 nm
Motion Tolerance:
30 IPS
Print Contrast Ratio(Minimum):
QD2500, QM2500, QBT2500: minimum 15%
QW2500: minimum 15% with specific configuration
Reading Angle:
Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°
Reading Indicators:
Beeper (Adjustable Tone and Volume); Datalogic ‘Green
Spot’ Good-read feedback on the code; Good-read LED
Resolution (Maximum):
QD2500, QM2500, QBT2500:
1D Linear: 0.077 mm / 3 mils;
PDF417: 0.077 mm / 3 mils;
Data Matrix: 0.127 mm / 5 mils;
QR Code: 0.17 mm / 6.7 mils
QW2500:
1D Linear: 0.077 mm / 3 mils;
PDF417: 0.127 mm / 5 mils;
Data Matrix: 0.152 mm / 6 mils;
QR Code: 0.17 mm / 6.7 mils

READING RANGES

Typical Depth of Field:
Minimum distance determined by symbol length and scan
angle. Printing resolution, contrast, and ambient light
dependent.
QD2500, QM2500, QBT2500:
Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
Code 39: 10 mils: 0.5 to 38.0 cm / 0.2 to 14.9 in
Data Matrix: 10 mils: 0.5 to 21.5 cm / 0.2 to 8.5 in
EAN/UPCA: 13 mils: 0.5 to 51.0 cm / 0.2 to 20.1in
PDF417: 6.7 mils: 0.5 to 21.0 cm / 0.2 to 8.3 in
QR Code: 20 mils: 0 to 37.0 cm / 0 to 14.6 in
QW2500:
Code 39: 5 mils: 0.5 to 23.0 cm / 0.2 to 9.0 in
Code 39: 10 mils: 0.5 to 37.0 cm / 0.2 to 14.5 in
Data Matrix: 10 mils: 1.0 to 15.5 cm / 0.39 to 6.1 in
EAN/UPCA: 13 mils: 1.0 to 40.0 cm / 0.39 to 15.7 in
PDF417: 6.7 mils: 0.5 to 13.5 cm / 0.2 to 5.3 in
QR Code: 20 mils: 1.0 to 33.0 cm / 0.39 to 12.9 in

SAFETY & REGULATORY

Agency Approvals:
The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be
referred to for a complete list of certifications.
Environmental Compliance:
Complies to China RoHS; Complies to EU RoHS
LED Classification:
Illuminator Exempt group, Aiming Risk Group 1
according to IEC 62471

UTILITIES

Datalogic Aladdin™:
Datalogic Aladdin configuration program is available for
download at no charge.
OPOS JavaPOS:
JavaPOS and OPOS Utilities are available for download
at no charge.
Remote Host Download:
Lowers service costs and improves operations.
