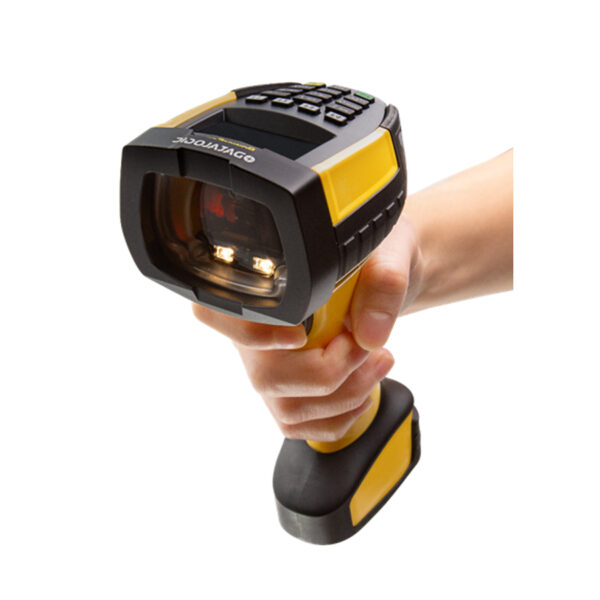

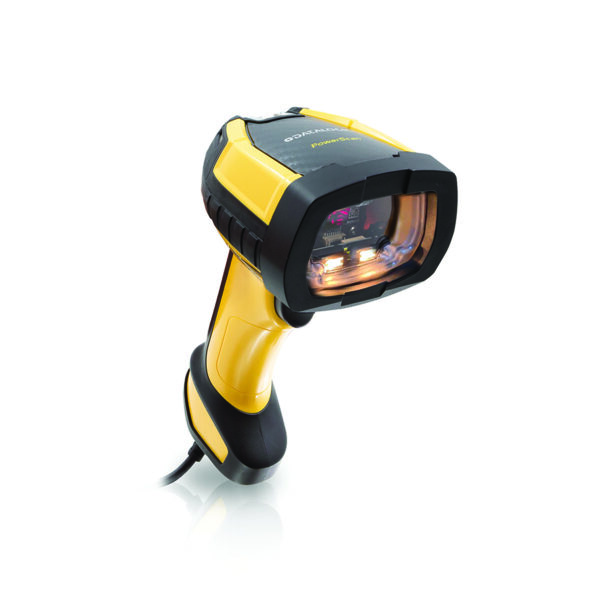

Datalogic Powerscan PD9630 1D/2D Imager Industrial Handheld Barcode Scanner

Name: DCI Scanning - Datalogic Powerscan PD9630 1D/2D Imager Industrial Handheld Barcode Scanner
SKU: Powerscan PD9630 1D/2D
Availability: InStock

Datalogic Powerscan PD9630 1D/2D Imager Industrial Handheld Barcode Scanner

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

DATALOGIC POWERSCAN PD9630 DATASHEET

Datalogic Powerscan PD9630 Barcode Scanner Reference Guide

Description

FEATURED

Snappy omnidirectional reading from contact to over 2.0 m / 6.5 ft
Datalogic’s new instinctive ‘frame’ aimer
Water and Particulate Sealing Rating: IP65 and IP67
10 million trigger hits
White light illumination
Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
Datalogic’s Motionix™ motion-sensing technology
Ergonomic shape provides hours of tireless data collection for the user
Supports 1D, stacked and 2D codes, postal codes and image capture
EASEOFCARE Service Plans offer a wide range of service options to protect yourinvestment, ensuring maximum productivity and ROI.

Summary

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

THE BEST FEEDBACK TO THE OPERATOR

The PD9630 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses. Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).

SUITABLE APPLICATIONS

Manufacturing Shop Floor
Work-in-Progress
Sub-Assembly
Component Tracking
Quality Control
Time and Cost Analysis
Machine Replenishment /Configuration
Line Inventory Control
Warehouse and Logistic Centers:
Shipping / Receiving
Parcel Preparation
Picking / Put Away
Automatic Sorting Back-Up
End of Line Sorting

Specifications

DECODING CAPABILITY

1D / Linear Codes:
Auto discriminates all standard 1D codes including GS1
DataBar™ linear codes.
2D Codes:
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
Micro QR Code; QR Codee; Dot code
Postal Codes:
Australian Post; China Post; IMB; Japanese Post; KIX
Post; Planet Code; Portuguese Post; Postnet; Royal Mail
Code (RM4SCC); Swedish Post
Digital Watermarking:
Digimarc Barcodes (PD9630-HP and PD9630-DC)

ELECTRICAL

Current:
Operating (Typical):
PD9630-SR: 200mA @ 5V; 120mA @ 12V
PD9630-HP/ PD9630-DC: 280mA @ 5V / 140mA @ 12V
Standby/Idle (Typical): 187mA @ 5V / 92mA @ 12V
Input Voltage:
5 – 30 VDC ± 5%

ENVIRONMENTAL

Ambient Light:
0 – 100,000 lux
Drop Resistance:
Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F;
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
Tumble:
5,000 @ 1 m / 3.3 ft
Trigger Resistance:
Withstands 10 million hits
ESD Protection(Air Discharge):
20 kV
Humidity (Non-Condensing):
0 – 95%
Particulate and Water Sealing:
IP67 and IP65; Cradle IP65
Temperature:
Operating: -20 to 50 °C / -4 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F

INTERFACES

Interfaces:
RS-232 / USB

PHYSICAL CHARACTERISTICS

Colors Available:
Yellow/Black
Dimensions H x L x W:
19.0 x 14.0 x 7.9 cm / 7.5 x 5.5 x 3.1 in
Weight:
318.0 g / 11.2 oz

READING PERFORMANCE

Imager Sensor:
PD9630-SR/HP: 1280 x 800
PD9630-DC: 1280 x 800 color sensor
Light Source:
Aiming: 630 – 680 nm VLD
Illumination: White LED reading light
Print Contrast Ratio (Minimum):
15%
Reading Angle:
Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52°
Field Of View:
SR and HP: 38° H, 24° V
DC: 50° H, 33° V
Reading Indicators:
Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™
(Three Green Lights) technology for good-read feedback;
Datalogic ‘Green Spot’ on the Code; Dual Good Read
LEDs; Vibration.
Resolution (Maximum):
PD9630-SR/PD9630-DC: 1D Codes: 3 mil; 2D Codes: 6 mil
PD9630-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil

DECODING CAPABILITY

Typical Depth of Field:
Minimum distance determined by symbol length and scan
angle. Printing resolution, contrast, and ambient light
dependent.

SAFETY & REGULATORY

Agency Approvals:
The product meets necessary safety and regulatory
approvals for its intended use.
The Regulatory Addendum for this product can be
referred to for a complete list of certifications.
Environmental Compliance:
Complies to China RoHS; Complies to EU RoHS;
Complies to R.E.A.C.H.
Laser Classification:
Caution Laser Radiation – Do not stare into beam CDRH
Class II; IEC 60825 Class 2
LED Classification:
IEC 62471 LED Class: Exempt

UTILITIES

Datalogic Aladdin™:
Datalogic Aladdin configuration program is available for
download at no charge.
OPOS / JavaPOS:
OPOS and JavaPOS Utilities are available for download
at no charge.
Remote Host Download:
Available on request
