Datalogic Powerscan PBT9500 (DPM) Bluetooth Barcode Scanner (EOL)

Datalogic Powerscan PBT9500 (DPM) Bluetooth Barcode Scanner (EOL) - Image 2

Datalogic Powerscan PBT9500 (DPM) Bluetooth Barcode Scanner (EOL)

Name: Datalogic Powerscan PBT9500 (DPM) Bluetooth Barcode Scanner (EOL) - DCI Scanning
SKU: Powerscan PM9500 2D BT
Availability: InStock

The Datalogic PBT9500 area imager is a mobile scanner based on Bluetooth® wireless technology. It includes all of the scanning features associated with the PowerScan 9500 family and provides the freedom of mobility to move around a warehouse without the entanglement of cables.

DATALOGIC POWERSCAN PBT9500 DATASHEET

DATALOGIC POWERSCAN PBT9500 REFERENCE MANUAL

Description

FEATURED

End of life (EOL) – See related product replacements below

High-performance Liquid Lens allows one model to read standard, wide and high density codes
Piconet with up to 7 scanners connected to the same base station
Snappy omnidirectional reading
Intuitive aiming system
Soft white light illumination
Bluetooth® 3.0 Compliant: Class 1
Multiple interfaces available
Ethernet Connectivity (Standard and Industrial)
Lithium-Ion battery replaces in 3 seconds!
Datalogic’s Motionix™ motion-sensing technology
Ergonomic shape
Image capture
Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
Water and Particulate Sealing Rating: IP65
In-field replaceable window and cradle contacts
EASE OF CARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Summary

AIM, TRIGGER, DECODE: IT’S THAT SIMPLE!

An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 series. They combine omnidirectional reading capabilities, typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution.

MOBILITY ENHANCES PRODUCTIVITY

The Datalogic PowerScan PBT9500 further enhances operator efficiency and safety with Bluetooth® wireless technology; no matter if you need 1 or 100 meters of freedom: you never need to worry about getting tangled up in the cable. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. Should you need to operate 24/H, a quick 3-second battery replacement combined with a single or multi-slot battery charger allows for continuous operation without interruption.

The BC9180-BT base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.

DEVELOPED WITH THE USER IN MIND

Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scanintensive applications.

BUILT TO LAST

The rugged mechanics of the PowerScan brand guarantees reliable, long term operation. Repeated shocks and indoor / outdoor usage in the toughest environmental conditions do not impact its performance or reliability.

SUITABLE APPLICATIONS

• Entertainment
• Access Control
• Mobile Coupons
• Ticket Validation
• Security / Age Verification
• Lottery
• Manufacturing Shop Floor
• Work-in-Progress
• Sub-Assembly
• Component Tracking
• Quality Control
• Time and Cost Analysis
• Machine Replenishment /
Configuration
• Line Inventory Control
• Warehouse and Logistic Centers
• Shipping / Receiving
• Parcel Preparation
• Picking / Put Away
• Automatic Sorting Back-Up
• End of Line Sortin

Specifications

DECODING CAPABILITY

1D / Linear Codes:
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
Aztec Code; China Han Xin Code; Data matrix; MaxiCode,
Micro QR Code;QR Code
Postal Codes:
Australian post; China Post, IMB; Japanese Post; KIX Post; Planet Code;
Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
Stacked Codes:
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

READING PERFORMANCE

Typical Depth of Field:
Minimum distance determined by symbol length and scan angle; Printing resolution, contrast, and ambient light dependent.
Image Capture:
Graphic Formats: BMP, JPEG, TIFF;
Greyscale: 256, 16, 2
Image Sensor:
PBT9530: 864 x 544; PBT9530-HP: 1280 x 1024
Light Source:
Aiming: 630 – 680 nm VLD
Illumination: White LEDs
Print Contrast Ratio (Minimum):
15%
Reading Angle:
Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/-40°
Reading Indicators:
Beeper (Adjustable Tone and Volume);
Datalogic’s 3GL™ (Three Green Lights) technology
and loud beeper for good-read feedback:
Datalogic ‘Green Spot’ on the Code, Dual Good
Read LEDs
Resolution (Maximum):
PBT9530: 1D Codes: 4 mil; 2D Codes: 7.5 mil
PBT9530-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil

CORDLESS COMMUNICATION

Bluetooth Wireless Technology:
Piconet: Max. 7 readers per radio receiver (cradle and commercial dongle)
Profiles:
HID (Human Interface Device)
SPP (Serial Port Profile)
Radio Frequency:
2.40 to 2.48 GHz
Radio Range (Open Air):
Class 1: Exceeds 90 m/295 ft
Range distances are measured using the base station. Range with connection to other
Bluetooth peripherals may show different results.
Security:
Data Encryption; Scanner Authentication

ENVIRONMENTAL

Ambient Light:
0 – 100,000 lux
Drop Resistance:
Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface
PBT9500: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface
Particulate and Water Sealing:
IP65
ESD Protection (Air Discharge):
20 kV
Temperature Operating:
-20 to 50 °C / -4 to 122 °F
Storage/Transport:
-40 to 60 °C / -40 to 140 °F
Interfaces:
Keyboard Wedge RS-232
USB: OEM USB; USB COM; USB HID Keyboard;
Optional Ethernet (Standard, Industrial)

WARRANTY

3-Year Factory Warranty

Product – Kit

Kit Include specified cable, non Kit require additional cable.

Product – Scanner Only

Scanner Only, additional Cable, Base and PSU are required.

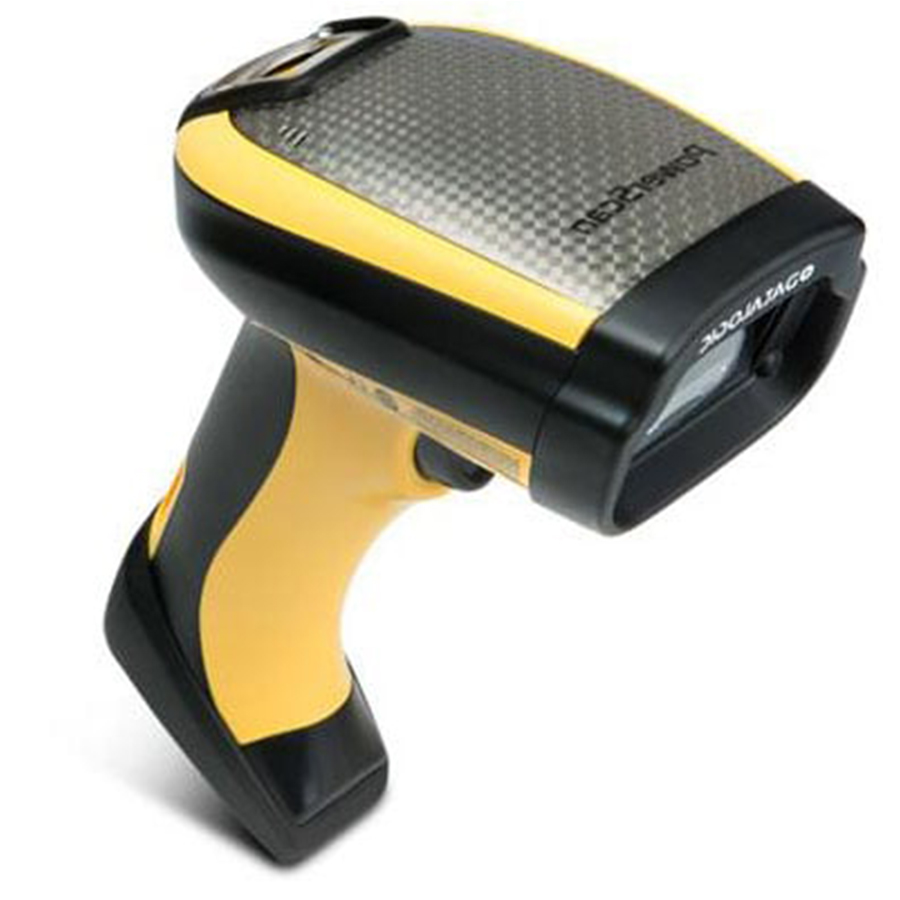

Datalogic PBT9500, Direct Part Marking Evo, Removable Battery

PBT9500-DPMRB
Contact us for stock availability

$0.00 Add to basket

Base Station

Non Kit require additional Base station.

Cables

Please specify cable type if required (additional accessory).

Fieldbus Converter (Ethernet/ Profinet) / Miscellaneous

Compact-size industrial gateway allowing the connection of devices equipped with a standard RS-232 communication interface into PROFINET IO and EtherNet/IP networks.
Optional Accessories.
