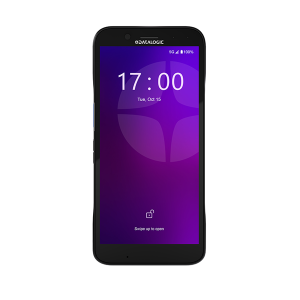

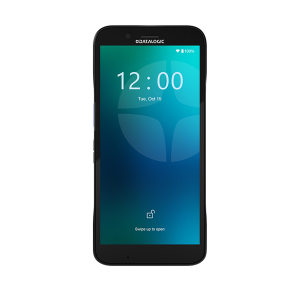

Datalogic Memor 12-17 Android 18 Enterprise Mobile Computer

Name: DCI Scanning - Datalogic Memor 12-17 Android 18 Enterprise Mobile Computer
Availability: InStock

Datalogic Memor 12-17 Android 18 Enterprise Mobile Computer - Image 2

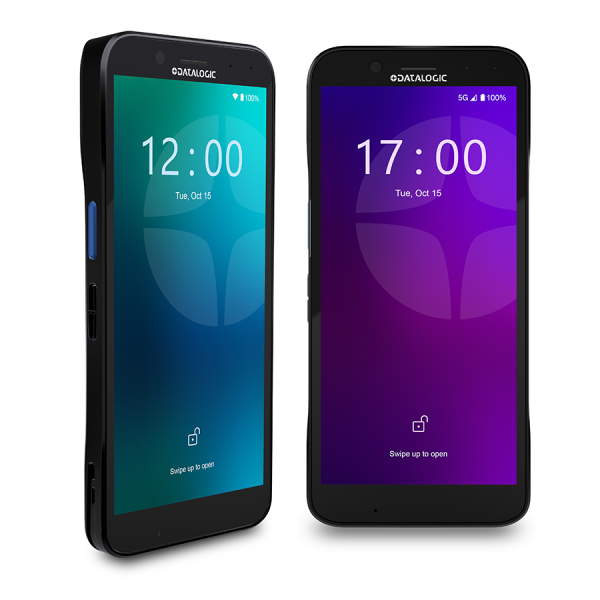

Datalogic Memor 12-17 Android 18 Enterprise Mobile Computer

The Memor 12-17 is our thinnest ever device, ergonomically designed to be comfortable in the hands of front-line workers for full-time daily use, thanks to it’s firm grip and light weight. Built for durability, it withstands everyday wear, meeting MIL-STD 810H standards for drop and tumbles. Additionally, a Corning™ Gorilla™ Glass 7 display provides enhanced protection against scratches and drops.

Datalogic Memor 12-17 Android 18 Enterprise Mobile Computer Datasheet

Description

FEATURED

Fast and easy scanning for every type of environment: Datalogic HalogenTM DE2121-DL scan engine + Green Spot
Superior connectivity and processing power: Wi-Fi 6/6E, Bluetooth 5.3, 5G + Qualcomm 4490 platform
Rugged and high-quality display: 6’’ inch capacitive multi-touch, FHD+ display, GG7
Integrated wireless charging system: dedicated wireless charging docks to facilitate daily device charging
Highest longevity in the entry-level tier: Android™ 13 with GMS (platform upgradeable to Android 18)
High reliability and water protection: IP65 and IP68 with battery, per IEC60529 specification, multiple 1.5/6ft drops to concrete over operating temperature with rubber boot, 1m/3.2 ft tumbles at room temperature with rubber boot

Summary

Enterprise-Grade Power in a Pocket-Sized Design

SLIM AND ROBUST

The Memor 12-17 is our thinnest ever device, ergonomically designed to be comfortable in the hands of front-line workers for full-time daily use, thanks to it’s firm grip and light weight. Built for durability, it withstands everyday wear, meeting MIL-STD 810H standards for drop and tumbles. Additionally, a Corning™ Gorilla™ Glass 7 display provides enhanced protection against scratches and drops.

FAST AND EASY SCANNING FOR EVERY TYPE OF ENVIRONMENT

Featuring the latest Datalogic Halogen 2121DL scan engine with our Green Spot and advanced DeepSight™ decoding technology, the Memor 12-17 simplifies scanning barcodes at high speeds and variable lighting conditions, even when they are damaged or dirty. With GS1 Digital Link–readiness, it is also the perfectly equipped solution for the latest retail revolution in barcode innovation.

PRODUCTIVITY AND CONNECTIVITY REDEFINED

The Memor 12-17 has been designed to support workers throughout their busy day, enabling seamless multitasking on a device they need to continuously rely on. Our unique Swap memory implementation enables customers to run multiple applications faster thanks to additional virtual RAM. Powered by the latest Qualcomm QC4490 platform, users can enjoy the best connectivity indoors and outdoors with WiFi6E and 5G, as well as the fastest GPS locking system.

CHARGING AND PAYING HAS NEVER BEEN SO EASY

Customize your charging experience to suit your working day – with Memor 12-17. Customers can choose how they charge their devices, from a fast USB-C cable for quick top-ups to a stable wired charging cradles for enterprise grade charging and data communication, or the convenience of Wireless charging cradles for contactless, carefree and frictionless operations. If your business requires an easy payment acceptance solution then Memor 12-17 is the perfect choice thanks to Multi-Side NFC reading technology.

MAXIMIZE YOUR INVESTMENT WITH MEMOR 12-17

With support up to Android 18, customer will enjoy an industry-leading 4+4 years of comprehensive hardware and software support, with continuous updates and access to cutting-edge tools from our Datalogic Mobility Suite. Additionally, the Memor 12-17 demonstrates a commitment to sustainability through eco-friendly accessories and packaging.

INDUSTRY – APPLICATIONS

Healthcare: Patient admittance, patient bed
care, electronic Medical Records, Laboratory
management
Retail: In-store operations, POS&Queue-Busting,
Price checks, Assisted sales, Product Information,
Gift registry, Loyalty Lookup, Shelf replenishment.
T&L: Access Control Ticketing, Last mile delivery,
Proof of delivery, Baggage reconciliation, Postal
services

Specifications

WIRELESS COMMUNICATIONS

Local area network (WLAN):
Wi-Fi 6e IEEE 802.11 a/b/g/n/ac/ax and 802.11 d/e/h/i/k/r/
v/w/mc; Frequency range: Country dependent, typically 2.4
GHz,5 GHz and 6 GHz bands;
2×2 MIMO; WPA3 Enterprise 192-bit mode supported
Personal Area Network (WPAN):
Bluetooth wireless technology v5.3 (Classic Bluetooth
wireless technology and BLE)
NFC Communication:
Support for the following standards: Tag types 1/2/3/4/5
(ISO14443-4 A/B; ISO15693; Mifare; Felica)
Card emulator. Contactless payments and Apple ECP
protocol supported.
WWAN / Cellular:

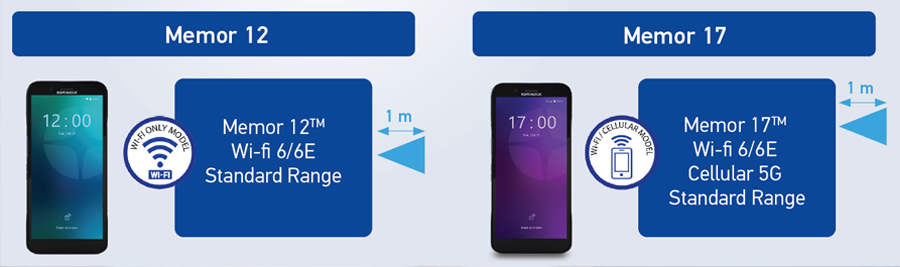

Memor 17
LTE-Advanced / 4G+; NR 5G FR1; 3GPP Rel.16;
• EMEA and ROW Configuration: GSM: Quad band;
WCDMA: B1/2/4/5/8; FDD_LTE: B1/2/3/4/5/7/8/17/19/20/
25/28/66; B34/38/39/40/41/42/43; 5G: n1/2/3/5/7/8/20/2
5/28/38/40/41/66/77/78/79;
• North America Configuration (AT&T and Verizon
certified): GSM: 850/1900; WCDMA: B2/4/5; FDD_LTE: B2/
4/5/7/12/13/17/19/25/26/29/30/66; TDD_LTE: B38/41/48;
5G: N2/5/7/12/13/25/26/29/30/38/41/66/71/77;
• VoLTE, VoNR and Wi-Fi calling enabled
Global Positioning System (GPS):
Integrated Assisted-GPS (A-GPS)
Supported Types: GPS Dual Band, Galileo Dual Band,
BeiDou Dual Band

ELECTRICAL

Battery:
1-piece swappable battery pack with rechargeable Li-Ion
batteries; 3.87V; 4,000 mAh typical (14.98 Watt-hours)
Wireless Charging:
WPC Qi EPP compliant; 7W charging

ENVIRONMENTAL

Drop Resistance:
Multiple 1.3/4ft drops to concrete across operative
temperature without rubber boot per enterprise standard
according to MIL STD 810H.
Multiple 1.5m/6ft drops to concrete over operating temp
(-10°C to 50°C/14°F to 122°F) with rubber boot according to
MIL STD 810H.
Tumbles:
500 0,5m/1.6 ft tumbles at room temperature without
protective boot, meets and exceed IEC 60068-2-32 Procedure
2 specification.
500 1m/3.2 ft tumbles at room temperature with rubber boot,
meets and exceed IEC 60068-2-32 Procedure 2 specification.
Particulate and Water Sealing:
IP65 and IP68 with battery, per IEC60529 specification
Chemical Resistance:
General purpose chemical cleansers:
“Water solution of Sodium Hypochlorite”
“Windex Multisurface / Glassex with ammonia”
“Formula 409, Glass and Surface cleaner / Glassex with
ammonia”
“Ethyl alcohol” “Isopropyl alcohol” “Hydrogen peroxide”
Temperature:
Operating: -10 to 50 ºC / 14 to 122 ºF
Storage/Transport: -40 to 70 ºC / -40 to 158 ºF
ESD:
15kV air discharge / 8kV contact discharge

PHYSICAL CHARACTERISTICS

Dimensions:
165 x 76.7 x 13.5 mm / 6.49 x 3.0 x 0.53 in
Primary Display:
6.0 inch LTPS in 18:9 format – FHD+ resolution 1080×2160;
LED backlight; 450 NITS
Keys:
Physical Keys: 2 side scan keys; PTT; Power On/Off;
Volume Up/ Down; 3 Android soft keys
Touch Panel:
Touch Screen: 5 points multi-touch capacitive panel with
hardened Gorilla Glass 7 and optical bonding; Support
for gloves and stylus; water drops rejection and antifingerprint
surface finishing
Weight:
With Battery: 245 g/8.6 oz

READING PERFORMANCE

Camera:
Rear Camera: Resolution: 13 megapixel; Auto focus
Illumination: User controllable LED flash (torch mode);
Front Camera: Resolution: 8 megapixel; Fixed focus
Scan Engine:
Halogen™ DE2121-DL 1D/2D scan engine;
Datalogic’s ‘Green Spot’ for good-read feedback;

SENSORS

Vibration:
Software programmable for duration and intensity
Accelerometer:
3-Axis accelerometer to detect orientation
Gyroscope:
Senses angular velocity
Ambient Light:
Auto adjusts display backlight
Proximity:
Auto deactivates display when close to face
Magnetometer:
e-compass for direction and orientation detection
Barometer:
Atmospheric pressure / Z-location (Memor 17 only)

INTERFACES

Interfaces:
High Speed USB 3.2 gen1 Host and Client (Type-C); Super
Speed USB 2.0 (Type-C, Bottom I/O)

AUDIO

Microphones:
2 mics, with noise cancellation
Loudspeaker:
Speaker for handsfree calls and audio application
Receiver:
Speaker for voice calls

SAFETY & REGULATORY

Agency Approvals:
The product meets necessary safety and regulatory
approvals for its intended use.
Environmental Compliance:
Complies to EU RoHS

SOFTWARE

Protection:
Shield – Android Security Updates;
Launcher – to lockdown device to kiosk mode;
Entreprise Browser – to web-browse only to a set of approved
URLs; Integrity KIT – to safeguard HW interfaces
Configuration:
Scan2Deploy Studio – to configure and stage device,
OEMConfig – for UEM/EMM Compatibility,
AE QR Code Enrollment – for easy EMM/UEM enrollment
Development:
SDKs (Java, Kotlin, Xamarin, .NET MAUI JavaScript),
Visual Formatter – a no-code platform for barcode formatting,
Wedge – a configurable barcode scanning input method
Optimization:
SoftSpot – a draggable touch scanner trigger;
Logger – to collect advanced device events log;
Wi-Fi Guard – to collect Wi-Fi data and statistics;
Battery Manager to select from different charging policies;
QuickBoard – A customizable enterprise virtual keyboard to
enhance productivity and adapt to specific application contexts;
Snap OCR – Rear or scanner camera digitizes text, streamlining
data entry and label parsing
Provisioning:
Android Zero-Touch, Android Enterprise QR Code, NFC Bump,
EMM Token, DPC Identifier enrollment
UEM/EMM:
SOTI MobiControl, VMWare Workspace One, Microsoft
intune, 42Gears Sure MDM, Ivanti Neurons, Ivanti
Avalanche, and any OEM Config compliant UEM/EMM
Terminal Emulator and PTT Compatibility Highlight:
Ivanti Velocity, StayLinked Smart TE, Zello PTT

SYSTEM

SIM Slots:
1 Nano SIM; 1 eSIM
Expansion Slots:
1 Micro SD card (up to 2TB)
Memory:
RAM Model 6GB: 6 GB on-chip RAM, plus an optional 2
GB SWAP Memory (using flash storage as extra RAM,
activated through a setting).
UFS Flash Storage: 64 GB (both models)
Microprocessor:
Qualcomm QCx4490 Octa-core 2.4 GHz
Operating System:
Android 13, upgradeable to Android 18
Real-Time Clock:
Time and date stamping under software control
