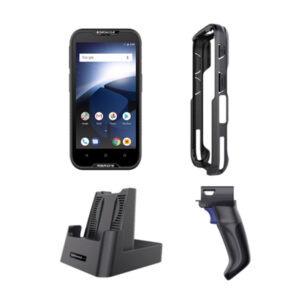

Datalogic Memor 10 Android PDA Barcode Scanner (EOL)

Name: Datalogic Memor 10 Android PDA Barcode Scanner (EOL) - DCI Scanning
Availability: InStock

If you are looking for the power and the performance of a smartphone but are concerned about the typical Enterprise challenges, the new Datalogic Memor 10 PDA is the perfect rugged device for you! Memor 10 incorporates the latest smartphone technologies and the user-friendly experience of Android™ in a slim and compact design, combined with high-performance 1D/2D bar code scanning and industrial robustness for almost any indoor or outdoor environment.

DATALOGIC MEMOR 10 WAREHOUSING PDA BARCODE SCANNER DATASHEET

Description

FEATURED

End of life (EOL) – See related product replacements below

Ultra-Ergonomic, compact and robust
5-inch capacitive multi-touch HD display with Dragontrail™ hardened glass
Android 8.1 (Oreo) with Google Mobile Services
Wireless charging eliminates all contacts on the device and cradle
Ruggedized with drop resistance to 1.5m / 5ft to concrete and IP65 sealing
Dual-band Wi-Fi including the latest 802.11ac standard and 802.11r/k for fast roaming
A full suite of cellular connectivity for voice and data, featuring LTE-Advanced/4G+
Assisted GPS for location based apps
Bluetooth v4.2 short range wireless technology
NFC for proximity communications
Advanced 2D ultra-slim imager with Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback
Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
Chemical resistant plastics/enclosure designed to withstand daily cleaning with harsh disinfectant solutions
EASE OF CARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Summary

MEMOR™ 10-THE POWER OF A SMARTPHONE, DESIGNED ENTERPRISE

If you are looking for the power and the performance of a smartphone but are concerned about the typical Enterprise challenges, the new Datalogic Memor 10 PDA is the perfect rugged device for you! Memor 10 incorporates the latest smartphone technologies and the user friendly experience of Android™ in a slim and compact design, combined with high performance 1D/2D bar code scanning and industrial robustness for almost any indoor or outdoor environment.

TOP PERFORMANCE

The Memor 10 is powered by a superior octa-core platform clocked at 2 GHz for top performance with the most demanding applications, and features Android 8.1 (Oreo) with Google Mobile Services (GMS). Moreover, the Memor 10 is one of the first rugged mobile computers to be validated by Google for the ‘Android Enterprise Recommended’ program for rugged devices.

WIRELESS CHARGING MEETS SWAPPABLE BATTERY

The Memor 10 incorporates Datalogic’s industry-first wireless charging system for ultra-reliable contactless charging, thus eliminating the need for cleaning contacts on the device and docks. Moreover, Memor 10 offers a 1-piece swappable battery for the best operational advantage.

COMMUNICATIONS

The Memor 10 leverages a complete set of embedded wireless technologies for both indoor and outdoor applications: dual band Wi-Fi including the latest 802.11ac standard, Bluetooth® v4.2 with BLE for fast and ultra-low power connections, NFC for easy pairing, and particularly the cellular area voice and data connectivity, already leveraging the next generation of LTE-Advanced/4G+.

Specifications

WIRELESS COMMUNICATIONS

Local area network (WLAN)
IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v; Frequency range: Country dependent, typically 2.4GHz and 5GHz bands
Personal area network (WPAN)
Bluetooth wireless technology v4.2 (Classic Bluetooth wireless technology and BLE)
Ncf Communication
Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica

DECODING CAPABILITY

1D/Linear codes
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D codes
Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes
Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked Codes
Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional

ELECTRICAL

Battery
Replaceable battery pack with rechargeable Li-Ion batteries; 3.8v; 4,100 mAh (15.6 Watthours)
Wireless charging
Qi Compliant; 10 Watt fast charging

ENVIRONMENT

Drop resistance
Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.
Temperature
Operating: -20 to 50 ºC / -4 to 122 ºF
Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
Tumbles
Withstands 1000 hits from 0.5 m / 1.6 ft and 250 hits from 1.0 m / 3.2 ft per IEC 600-2-32 with rubber boot; Withstands 600 hits from 0.5 m / 1.6 ft per IEC 600-2-32 without rubber boot
Particulate and water sealing chemical resistance
IP65
Health cleanable
Isopropyl Alcohol, Hydrogen Peroxide, Clorox®
Bleach; applicable for both the device and cradles

INTERFACES

Interfaces
High Speed USB 2.0 Host and Client with USB Type C connector

SENSORS

Accelerometer
3-Axis accelerometer to detect orientation
Gyroscope
Senses angular velocity
Vibration
Software programmable for duration and intensity
Ambient Light
Auto adjusts display backlight
Proximity
Auto deactivates display when close to face

PHYSICAL CHARACTERISTICS

Dimensions Display
15.5 x 7.8 x 1.87 cm / 6.1 x 3.07 x 0.73 in 5 inch IPS HD resolution 720 x 1280; LED backlight; Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass
keys
Physical Keys: 2 side scan keys; Power On/ Off; Volume Up/Down; 3 user programmable Android™ keys
Weight(with battery)
With Battery: 285.0 g / 10.0 oz

READING PERFORMANCE

Camera
Resolution: 13 megapixel; Illumination: User controllable LED flash; Lens: Auto focus
Scan Engine
2D Ultra slim area imager (supports 1D / 2D codes); Datalogic’s ‘Green Spot’ for good-read feedback; Depth of Field: 8.5 to 50 cm / 3.3 to 19.7 in depending on bar code density and type; Resolution: VGA (640 x 480 pixels); Illumination: White LEDs; Aiming: 650nm VLD; Field of View: 48°H x 34°V
Print contrast(Minimum)
25%
Minimum element width
1D Linear: 0.0762 mm / 4 mils
PDF: 0.127 mm / 6.6 mils
Data Matrix: 0.195 mm / 7.5 mils

SAFETY & REGULATORY

Agency Approvals
The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance
Complies to EU RoHS

SOFTWARE

Applications
Datalogic’s SoftSpot technology for configurable soft triggers; Supports Datalogic’s Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello
Provisioning
Android Zero Touch enrollment and QR Code or NFC Bump provisioning
Configuration and maintenance
Datalogic DXU for device configuration and firmware upgrade from PC
Development
Java and Xamarin SDK available
MDM
SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM
Terminal emulation
StayLinked SmartTE, Wavelink Velocity

SYSTEM

Expansion slots
Micro-SD card slot: Compatible with Micro SD-HC cards; Data transfer up to 48 Mbps; User accessible
Memory
System RAM: 3 GB; eMMC Flash: 32 GB
Microprocessor
2 GHz Octa-core
Operating system
Android v8.1 with GMS
Real-time clock
Time and date stamping under software control
