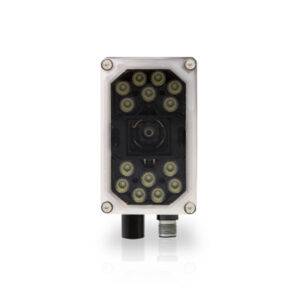

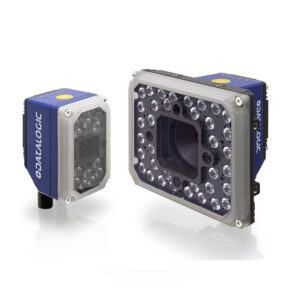

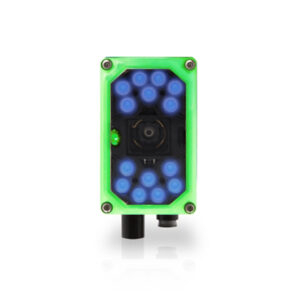

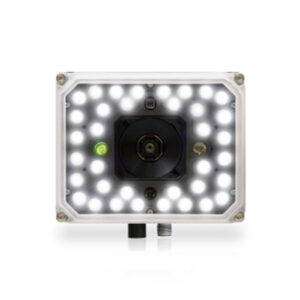

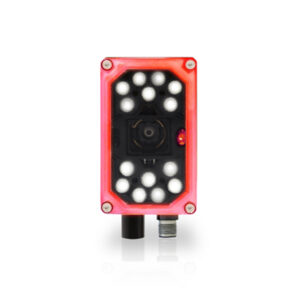

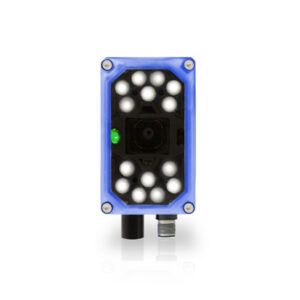

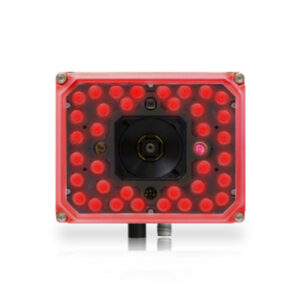

Datalogic Matrix 320 X Fixed Mounted Stationary 2D Imager Barcode Scanner

Name: DCI Scanning - Datalogic Matrix 320 X Fixed Mounted Stationary 2D Imager Barcode Scanner
Availability: InStock

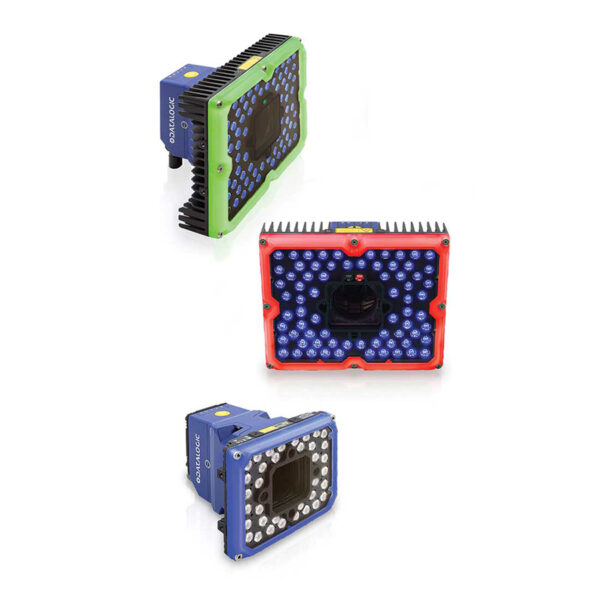

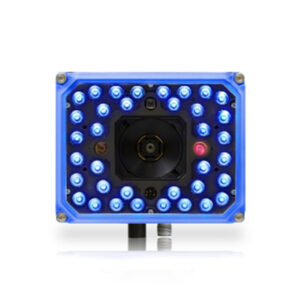

Datalogic Matrix 320 X Fixed Mounted Stationary 2D Imager Barcode Scanner

Matrix 320 image based code reader has been designed to EMPOWER TRACEABILITY applications providing benefits for End Users and Machine Builders. Matrix 320 brilliantly solves traceability applications in Intralogistics, Distribution, 3PL, Retail logistics and the Shop Floor.

Datalogic MATRIX 320X™ 5MP Fixed Imager Barcode Scanner Datasheet

Description

FEATURED

C-Mount models for maximum optical configurability and high intrinsic DOF
Standard VHP (Very High Power) and new UHP (Ultra High Power) lightings for challenging applications
Covers and filters for special applications provided as accessories for easy stock management
Packtrack capability to minimize the gap between objects and increase system productivity
New embedded orientation sesnor and smart aiming system for easy installation
Grid pattern aiming system and embedded distance sesnor to improve output in presentation application
Web monitoring and fast image saving at Gigabit Ethernet speed f or complete performance diagnostics
Configurable 360 degree visual feedback for enhaced operator experience
Full industrial connectivity and Top Industrial Grade for easy and safe integration

Summary

TOP PERFORMING 2D READER TO EMPOWER SHOP FLOOR AND INTRALOGISTIC TRACEABILITY

Matrix 320 5MP image based code reader has been designed to EMPOWER TRACEABILITY applications providing benefits for End Users and Machine Builders. Matrix 320 5MP brilliantly solves traceability applications in intralogistics, distribution, 3PL, retail logistics and shop floor.

Matrix 320 5MP offers a COMPLETE SOLUTION and TOP PERFORMANCE to achieve higher productivity at the best price/performance ratio. Matrix 320 5MP has excellent reading performance with a powerful smart configurable lighting system allowing 2 color options (blue, white) and 2 power options (Very and Ultra High Power) able to solve extremely challenging traceability applications.

To boost productivity in Intralogistics and Logistics segments, hands-free operations enjoy higher performance with Matrix 320 5MP snappy reactivity because of its outstanding Depth of Field (DOF), a new grid pattern aiming system, a new embedded distance sensor for the best user experience and reading output.

Matrix 320 5MP modular design with a complete portfolio of lenses, lightings, filters, and accessories provides the highest market application flexibility in the selection and in the combination of the parts reducing the feasibility time and cost, helping system integrators to find effective powerful solutions for vertical applications in any industrial environment to grow the business opportunities.

Matrix 320 5MP is very easy to install with its new embedded orientation sensor, the new fast replacing bracket, the smart adapter that allows live focus and iris calibration without exposing the inside product to harsh environmental condition, the improved integrated aiming system, the embedX-Press button HMI and DL.Code software powered by an intuitive autolearning/autosetup features.

Full industrial connectivity, overall compactness, rotating connectors, a top industrial grade make Matrix 320 5MP extremely easy to fit into every industrial environment. New configurable 360-degree multicolor read-feedback and Green /Red Spot technology provide an outstanding visual feedback. Performance Analysis is also simplified by a new web interface to monitor the reader with a complete suite of diagnostics that leverages a new generation of fast FTP image saving. The new web Device Discovery simplifies the access and monitoring of all the readers in the network.

Matrix 320 5MP models together with Matrix 320 2MP, compliment the current Matrix family of Matrix 120 and Matrix 220, once again establishing Datalogic leadership in Stationary Industrial Scanners.

SUITABLE APPLICATIONS

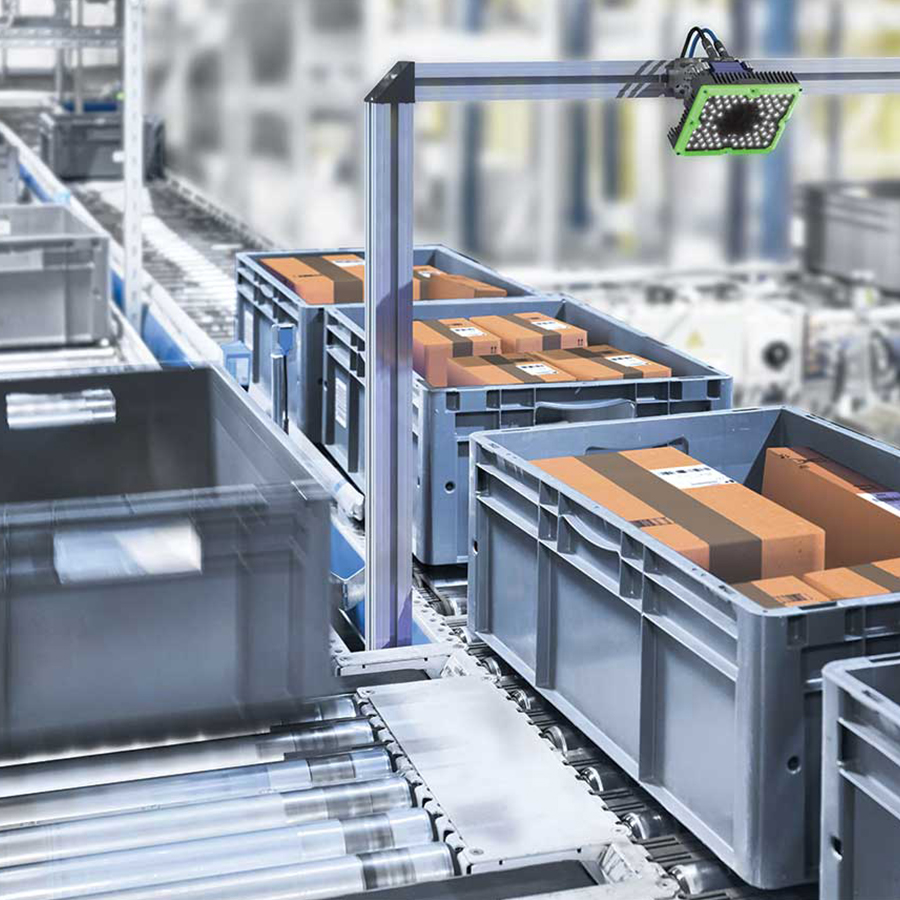

Intralogistics, Logistic, E-Commerce – Retail
Logistic Automation

Inbound / Outbound Pallet Picking (Fork Lift)
Print & Apply verification (Re-labelling)
Order Fulfillment (Automatic/Manual) and Order Verification
Tote verification
Apparel and Small Items traceability
Depalletizing, Palletizing, Cage Preparation
Pallet Traceability / Pallet Wrapping
Reverse Logistic

Manufacturing

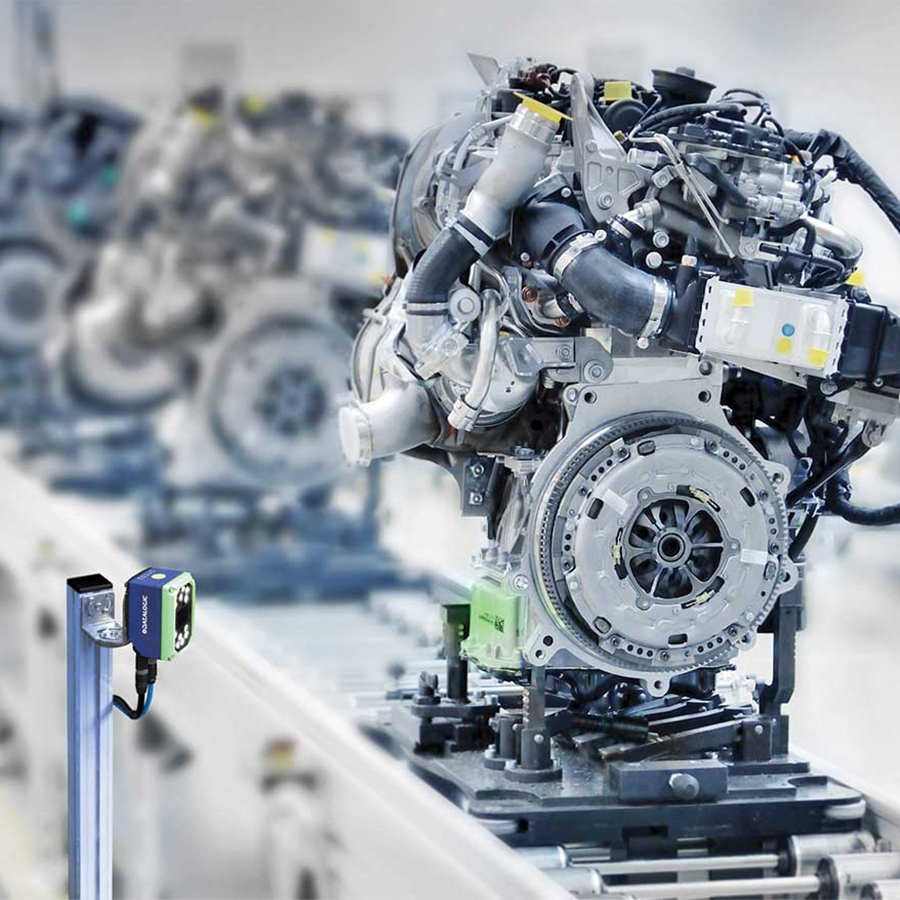

Automotive Work in Progress (WIP) and Traceability
Component / Part Traceability
Secondary Packaging Traceability (bundling)
End of Line Traceability

Specifications

TECHNICAL DATA

Sensor:
Image resolution 2.0 Mpixel (1920 x 1080) 16:9 form factor – 1/3” CMOS global shutter
Frame Rate:
60 frames/s
Reading range:
14 Led Illuminator Model | 36 Led Illuminator Model
6mm: Minimum: 50 – Maximum: 550 mm
9mm: Minimum: 35 – Maximum: 1000 mm
16mm: Minimum: 70 – Maximum: 1500 mm
Optical models (Viewing angles):
Liquid Lens 9mm (34°), Liquid Lens 16mm (20°)
Optical Focus Control:
Electronic focus control
Illumination:
Internal illuminators colors: Blue, Red, White lights
Internal illuminators power: High Power 14 LEDs, Very High Power 36 LEDs

C-Mount Models

Optical Models (Viewing Angles):
C-Mount Lens 4 mm (68°), 6 mm (48°), 8 mm (37°), 12 mm (25°), 16 mm (19°), 25 mm (12°), 35 mm (9°)
Optical Focus Control:
Manual focus adjustment
Illumination:
Internal illuminators colors: Blue, White, IR, UV
14 Led Illuminator Model: Not available | 36 Led Illuminator Model: Internal illuminators power: Very High Power 36 LEDs
Polarizing Filter:
Available as front cover accessory
Code Quality Metrics:
1D CQ Standard: ISO/IEC 15416
2D CQ Standard: ISO/IEC 16022/18004, ISO/IEC 29158 (AIM-DPM), ISO/IEC 15415 ISO/IEC 15415
Power Supply:
24 Vdc ± 10%
Max Power Consumption:
14 Led Illuminator Model0.42 A, 10 W max | 36 Led Illuminator Model0.62 A, 15 W max.
CPU:
Standard models: 4 cores @ 900 MHz – Premium models: 4 cores @ 1600 MHz
Protection Class EN60529:
IP65 and IP67
Operating Temperature:
Liquid lens models: -0 to 45 °C /32 to 113 °F
C-MOUNT models: -10 to 50 °C / 14 to 122 °F
Part Number listed with (*) in the models table: 0 to 50 °C / 32 to 122 °F
Storage Temperature:
-20 to 70 °C (-4 to 158 °F)
Case Material:
Aluminium case and plastic protective window cover
Dimensions:
14 Led Illuminator Model: H 108.7 x W 54 x L 55.5 mm / 4.3 x 2.1 x 2.2 in, Connector at 0°
H 88 x W 54 x L 75.6 mm / 4.3 x 2.1 x 2.2 in, Connector at 90° | 36 Led Illuminator Model:H 115.5 x W 126 x L 70.3 mm / 4.6 x 4.9 x 2.8 in, Connector at 0°
H 101 x W 126 x L 90.7 mm / 4.6 x 4.9 x 2.8 in, Connector at 90°
Weight:
C-MOUNT 36 LED illuminator:
reader body 300 gr / 10.6 oz
illuminator adapter 300 gr / 10.6 oz
illuminator 300 gr / 10.6 oz
Sulfur gas resistance:
Available for all models according to ISO EN 60068-2-43
ESD Safe:
YES, will be available as front cover accessory
YAG Laser Protection:
YES, available as filter accessory (compatible with ESD cover)
Flexible cables:
YES, available as accessories
Embedded communication interfaces:
– Ethernet 10/100/1000 Mbit/s: TCP/IP, UDP, FTP, SFTP and Fieldbus PROFINET IO, Ethernet IP, Modbus TCP
– Serial RS-232/RS-422FD up to 115.2 Kbit/s + Serial Aux RS-232 up to 115.2 Kbit/s
– OPC UA
Reader Networking:
Datalogic ID-NET™
Connectivity Modes:
Pass Through, Master/Slave, Ethernet point to point
Digital Inputs:
2 inputs opto-coupled and polarity insensitive
Max. Voltage 30 Vdc
Max. Input Current 10 mA
Digital Outputs:
3 Outputs: configurable NPN, PNP and PP short-circuit protected
VOUT (ILOAD = 0 mA) max. 24 VDC
VOUT (ILOAD = 100 mA) max. 3 VDC
ILOAD max. 100 mA
Using CBX connection box the first 2 outputs are opto-coupled
Aiming System:
Laser cross red projection aiming
User Interface:
Configurable 360° multicolor visual feedback
Green Spot and Red Spot LEDs
X-PRESS™ Human Machine Interface
Beeper, X-PRESS™ Push Button, 7 LEDs (Status, Communication , Trigger, Good-read, Ready, Power on, Network)
Web Monitoring Interface
Device Programming:
DL.CODE™ Windows-based software (programming via Ethernet or Serial Interface) with Javascript output formatter
Serial Host Mode programming
X-PRESS™ Human Machine Interface
Warranty:
2-Year Factory Warranty
