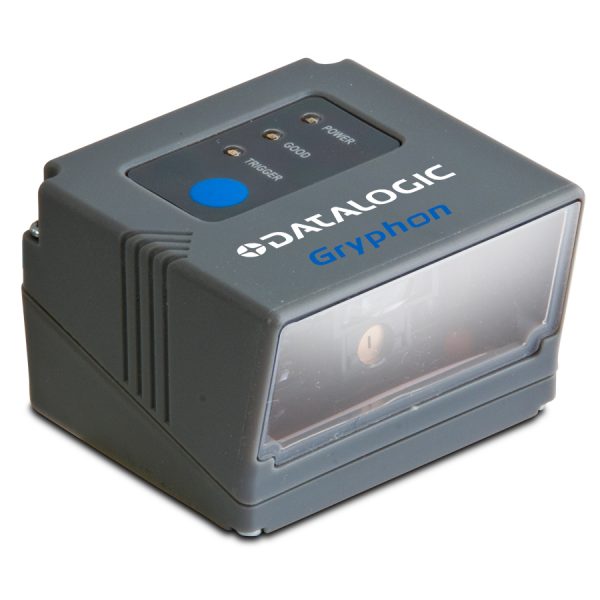

Datalogic Gryphon™ GFS4400 2D OEM Scan Engine

Name: Datalogic Gryphon™ GFS4400 2D OEM Scan Engine - DCI Scanning
SKU: GRYPHON GFS4400
Availability: InStock

Designed for easy integration, the Datalogic Gryphon GFS4400 2D module provides a ‘plug-and play’ solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.

DATALOGIC GRYPHON™ GFS4400 2D OEM SCAN ENGINE DATASHEET

Description

FEATURED

Highly visible 4-Dot aimer with center cross for targeted scanning
Omnidirectional reading
Advanced motion tolerance optics
Image capture and document scanning capabilities
Reads bar codes down to 4mils
Reads 1D, 2D and Postal codes plus Stacked and Composite codes
Interface options: RS-232 or USB
Datalogic’s patented ‘Green Spot’ for good-read feedback
Integrated good-read beeper
Automatic sensing or manual trigger options available
High-impact resin creates a solvent-tolerant enclosure
Water and Particulate Sealing Rating: IP54
EASEOFCARE Service Plans offer a wide range of service options to protect your investment,ensuring maximum productivity and ROI

Summary

SIMPLE TO INTEGRATE

Designed for easy integration, the Gryphon GFS4400 2D module provides a ‘plug-and-play’ solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.

ADVANCED IMAGING TECHNOLOGY

The GFS4400 2D OEM module features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFS4400 reader offers good-read visual confirmation with Datalogic’s patented ‘Green Spot’ technology.

RED ILLUMINATING LIGHT AND 4-DOT AIMER

User comfort is maximized with the GFS4400 OEM module’s steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

SUITABLE APPLICATIONS

OEM Applications:
Service Kiosks
Price Verifiers
Ticket Readers
Document Handling
Medical Laboratories
Vending Machines
Additional Automated Equipment

Specifications

DECODING CAPABILITY

1D / Linear Codes:
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
Micro QR Code; QR Code
Postal Codes:
Australian Post; British Post; China Post; IMB; Japanese
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)
Stacked Codes:
EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites

ELECTRICAL

Current:
Operating (Typical): < 180 mA
Standby/Idle (Typical):
Automatic Object Sense Mode: 115 mA
Online & Serial OnLine Modes: 65 mA
Input Voltage:
5 VDC +/- 5%

ENVIRONMENTAL

Ambient Light:
0 – 100,000 lux
Drop Resistance:
Withstands repeated drops from 0.76 m / 2.50 ft onto a
concrete surface
Humidity (Non-Condensing):
5 – 95%
Particulate and Water Sealing:
IP54
Temperature:
Operating: -20 to 50 °C / -4 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F

INTERFACES

Interfaces:
OEM (IBM) USB; RS-232; USB: USB COM;
USB HID Keyboard

PHYSICAL CHARACTERISTICS

Colors Available:
Grey; Other colors and custom logo options are available
for minimum quantity purchase.
Dimensions:
3.9 x 5.7 x 5.8 cm / 1.5 x 2.2 x 2.3 in
Weight:
USB: 170 g / 6.3 oz
RS-232: 204 g / 7.2 oz

READING PERFORMANCE

Image Capture:
Graphic Formats: BMP, JPEG, TIFF;
Greyscale: 256, 16, 2
Imager Sensor:
Wide VGA: 752 x 480 pixels
Light Source:
Aiming: 650 nm VLD
Print Contrast Ratio(Minimum):
25%
Reading Angle:
Pitch: +/- 40°; Roll (Tilt): 180°; Skew (Yaw): +/- 40°
Reading Indicators:
Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good
Read Feedback; Good Read LED
Resolution (Maximum):
1D Linear: 0.102 mm / 4 mils
Data Matrix: 0.178 mm / 7 mils
PDF417: 0.102 mm / 4 mils

READING RANGES

Typical Depth of Field:
Minimum distance determined by symbol length and scan
angle. Printing resolution, contrast, and ambient light
dependent.
Code 39: 5 mil: 4.7 to 17.7 cm / 1.8 to 7.0 in
Code 39: 10 mil: 1.7 to 33.2 cm / 0.7 to 13.1 in
Data Matrix: 10 mil: 2.7 to 17.1 cm / 1.0 to 6.7 in
Data Matrix: 15 mil: 1.2 to 24.6 cm / 0.5 to 9.7 in
EAN: 13 mil: 2.5 to 41.9 cm / 1.0 to 16.5 in
PDF417: 10 mil: 2.2 to 23.9 cm / 0.9 to 9.4 in
QR Code: 10 mil: 3.5 to 16.0 cm / 1.4 to 6.3 in

SAFETY & REGULATORY

Agency Approvals:
The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance:
Complies to China RoHS; Complies to EU RoHS
LED Classification:
Caution Laser Radiation – Do not stare into beam; IEC
60825, Class2

UTILITIES

Datalogic Aladdin™:
Datalogic Aladdin configuration program is available for
download at no charge.
OPOS / JavaPOS:
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Remote Host Download:
Lowers service costs and improves operations.
