Datalogic DS4800 Fixed Mount Laser Barcode Scanner (EOL)

The Datalogic DS4800 features excellent reading performance satisfying all main identification needs of manufacturing plants, especially in automated shop floor and automated warehousing applications.

DATALOGIC DS4800 FIXED MOUNT LASER BARCODE SCANNER DATASHEET
DATALOGIC DS4800 FIXED MOUNT LASER BARCODE SCANNER REFERENCE MANUAL

Description

FEATURED

End of life (EOL) – See related product replacements below

  • Smart Focus adjustment for flexible reading area selection
  • DIGITECH™ technology enables excellent reading performance
  • ACR4™ reconstruction technology improves reading of damaged barcodes
  • Linear and integrated Oscillating Mirror versions
  • Intuitive X-PRESS™ interface for quick scanner installation and troubleshooting
  • Easy setup through multilanguage Genius™ software tool
  • ID-NET™ embedded interface for highspeed communication networks
  • Multilanguage display improves scanner monitoring and diagnostics
  • Total ambient light immunity thanks to high frequency laser modulation
  • IP65 rugged industrial housing
  • Subzero versions available

Summary

HIGH PERFORMANCE READING CAPABILITY

Through smart focus adjustment, DS4800 allows to optimize the reading performance based on reading distance. Thanks to DIGITECH™ technology and optimized reading recipes, the DS4800 provides excellent reading performance on low quality and low contrast barcodes as well as at high skew angles

INTELLIGENT INTERFACE

The Datalogic DS4800 is equipped with the innovative X-PRESS™ Human Machine Interface, granting easy scanner installation & maintenance. This interface clearly presents status and diagnostic information by means of five LED bar graph, while the single multi-function key gives immediate access to relevant functions such as Test Mode, Auto Setup, Auto learn and Focus Adjustment.

ROBUST & RELIABLE

Thanks to subzero models, the DS4800 can operate smoothly down to -35ºC. Internal heater and de-frost window heater assures correct operation anywhere in the allowed -35º +50ºC range.

With its rugged construction, IP65 protection class, 0 to 50ºC operating temperature range and total ambient light immunity, DS4800 is the ideal product for industrial applications.

SUITABLE APPLICATIONS

  • Automated warehousing
  • Reading on pallets
  • Items and parts tracking
  • Picking systems
  • Automated Shop Floor
  • Process Control systems
  • Outdoor application (Subzero Model)
  • Frozen Industry (Subzero Model)

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    Code 2/5, Code39, Code93, Code128, EAN/UPC, EAN128, Codabar, Pharmacode, Plessey, ISBT128
  • Multilabel Readings:
    Up to 10 different symbologies during the same reading phase
  • Laser Classification:
    IEC 825-1 Class2; CDRH Class II

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    Main port RS232/RS422/RS485 up to 115.2 Kbit/s
    Auxiliary port RS232 up to 115.2 kbps
    ID-NET™ port up to 1 Mbps
  • User Interfaces:
    ID-NET™ port up to 1 Mbps
    Programmable Push Button, LEDs (Status, Com, Trigger, Good, Ready, Power On)
  • Digital Inputs:
    Two SW programmable, optocoupled, NPN/PNP
  • Digital Outputs:
    Two SW programmable, event driven, optocoupled
  • Display:
    16 x 2 characters
  • Device Programming:
    X-PRESS™ Human Machine Interface
    Windows™ based SW (Genius™) via a serial link
    Serial Host Mode Programming sequences
  • Operating Modes:
    ‘On-line’, ‘Serial On-line’, ‘Automatic’, ‘Continuous’, ‘Test’, ‘Verifier’

PHYSICAL CHARACTERISTICS

  • Dimensions:
    DS4800-100X: 101 x 85 x 42 mm (3.97 x 3.33 x 1.65 in)
    DS4800-110X: 117 x 123 x 48 mm (4.60 x 4.84 x 1.89 in)
  • Weight:
    DS4800-100X: 570 gr. (20.11 oz.)
    DS4800-110X: 780 gr. (27.9 oz.)
  • Case Material:
    Aluminum
  • Operating Temperature:
    0 to 50 °C (32 to 122 °F)
  • Storage Temperature:
    -35 to 50 °C (-31 to 122 °F) for subzero models
  • Humidity:
    90% non condensing
  • Vibration Resistance:
    IEC 68-2-6 test FC 1.5mm; 10 to 55 Hz; 2 hours on each axis
  • Shock Resistance:
    IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis
  • Protection Class:
    IP65
  • Light Source:
    Visible laser diode (630 to 680 nm)
  • Scanning Speed:
    600 – 1000 scans/s
  • Resolution:
    Up to 0.20 mm (8 mils)
  • Reading Distance:
    Up to 1000 mm on 0.50 mm (20 mils) barcodes
  • Depth Of Field:
    Up to 600 mm on 0.50 mm (20 mils) barcodes
  • Laser Control:
    Safety system to turn laser off in cases of motor slowdown or failure
  • Motor Control:
    Motor On/Off command string and Motor Speed SW programmable
  • Power Supply:
    DS4800-1000: 10 to 30 VDC
    DS4800-1005: 24 Vdc ± 10%
    DS4800-1100: 10 to 30 VDC
    DS4800-1105: 24 Vdc ± 10%
  • Power Consumption:
    DS4800-1000: 6 W
    DS4800-1005: 28.8 W
    DS4800-1100: 7.5 W
    DS4800-1105: 32 W

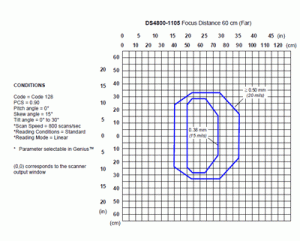

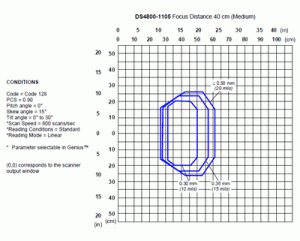

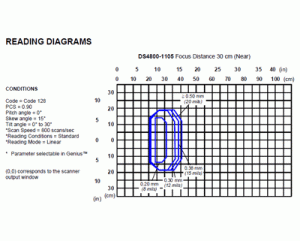

Reading Diagrams
DS4800_3

DS4800_2

DS4800_1
