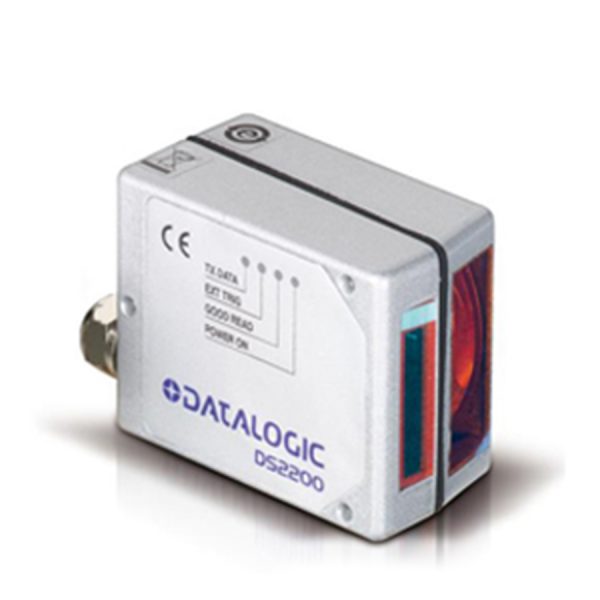

Datalogic DS2200 Fixed Mount Linear Barcode Scanner (EOL)

Datalogic DS2200 Fixed Mount Linear Barcode Scanner (EOL)

Datalogic DS2200 Fixed Mount Linear Barcode Scanner (EOL)

The DS2200 embedded bar code reader is an ultra-compact laser scanner with built-in decoder, 500scans/sec, reading distance from 50 to 220mm.

DATALOGIC DS2200 FIXED MOUNT LINEAR BARCODE SCANNER DATASHEET
DATALOGIC DS2200 FIXED MOUNT LINEAR BARCODE SCANNER REFERENCE MANUAL

Description

FEATURED

End of life (EOL) – See related product replacements below

  • Extremely compact dimensions
  • Very high density code reading (up to 0.076 mm / 3mils)
  • Scanning speed up to 500 scans/s
  • Dual serial interface
  • Light weight (150 g / 5.29 oz. without cable)
  • IP65 (NEMA 4) rugged industrial housing

Summary

DESIGN

The Datalogic DS2200 is designed for OEM and other applications requiring easy integration, high reliability and cost effectiveness. Datalogic Automation’s advanced technology and experience in miniaturized laser components enables development of a compact industrial laser scanner without compromising reading performance and industrial quality standards. In conformity with the needs of automatic machinery, DS2200 features very compact dimensions, light weight and IP65 rugged industrial housing.

ADVANTAGES

Excellent performance and reliability on all main bar code symbologies thanks to high scanning speed and advanced optic features.

High reading performance on damaged or poorly printed bar codes

Excellent performance on high resolution codes with reduced minimum reading distance

SUITABLE APPLICATIONS

  • OEM integration in automatic machines
  • Chemical and biomedical analysis machines
  • Document handling machines
  • Print & Apply systems
  • Packaging machines
  • ATL (Automated Tape Library)

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    Code 2/5, Code39, Code93, Code128, EAN/UPC, EAN128, Codabar, Pharmacode
  • Multilabel Readings:
    Up to 6 different symbologies during the same reading phase
  • Laser Classification:
    IEC 825-1 Class2; CDRH Class II

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    Main port RS485 Half Duplex up to 115.2 Kbit/s
    Auxiliary port RS232 up to 115.2 kbps
  • Digital Inputs:
    External Trigger (NPN only)
  • Digital Outputs:
    Two SW programmable, event driven
  • Device Programming:
    Windows™ based SW (WinHost™) via serial link
    Serial Host Mode Programming sequences
  • Operating Mods:
    ‘On-line’, ‘Serial On-line’, ‘Automatic’, ‘Test’, ‘Verifier’

PHYSICAL CHARACTERISTICS

  • Dimensions:
    50 x 40 x 28 mm (1.97 x 1.57 x 1.10 in)
  • Weight:
    150 g (5.29 oz.)
  • Case Material:
    Die-cast Zinc
  • Operating Temperature:
    0 to 40 °C (32 to 104 °F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Vibration Resistance:
    IEC 68-2-6 test FC 1.5mm; 10 to 55 Hz; 2 hours on each axis
  • Shock Resistance:
    IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis
  • Light Source:
    Visible laser diode (630 to 680 nm)
  • Protection Class:
    IP65
  • Scanning Speed:
    500 scans/sec (SW programmable)
  • Max. Resolution:
    DS2200-11×0: Up to 0.15 mm (6 mils)
    DS2200-21×0: Up to 0.076 mm (3 mils)
  • Max. Reading Distance:
    DS2200-11×0: Up to 220 mm on 0.60 mm (24 mils) codes
    DS2200-21×0: Up to 125mm on 0.20 mm (8 mils) codes
  • Max. Depth of Field:
    DS2200-11×0: Up to 170 mm on 0.60 mm (24 mils) codes
    DS2200-21×0: Up to 85 mm on 0.20 mm (8 mils) codes
  • Aperture Angle:
    DS2200-11×0: 52 degrees
    DS2200-21×0: 62 degrees
  • Laser Control:
    Safety system to turn laser off in cases of motor slowdown or failure
  • Power Supply:
    5 VDC (4 to 30 VDC with converter)
  • Power Consumption:
    2 W max

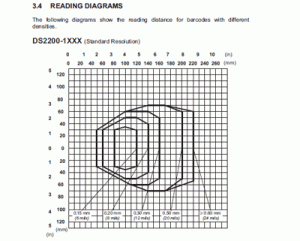

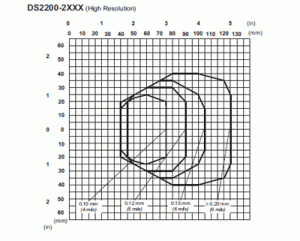

Reading Diagrams
DS2200_1

DS2200_2
