Datalogic DS1100 Fixed Mount Linear Barcode Scanner (EOL)

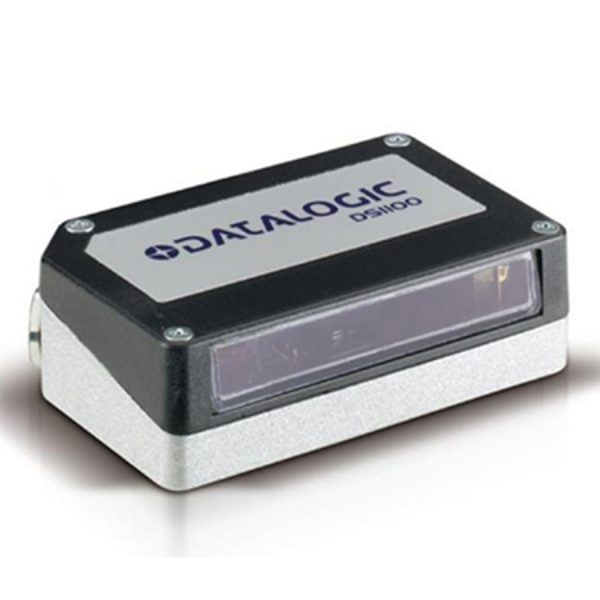

Dataloginc-DS1100-LASER-MARK

Datalogic DS1100 Fixed Mount Linear Barcode Scanner (EOL)

The DS100 embedded bar code reader is an ultra-compact cost-effective laser scanner characterized by very compact dimensions, motor on/off software commands, wide reading width at a short reading distance, lightweight <100 g, built-in RISC decoder, scanning speed of 500scans/sec, dual high speed serial interface, IP65 rugged industrial housing.

DATALOGIC DS1100 LASER BARCODE SCANNER DATASHEET
DATALOGIC DS1100 LASER BARCODE SCANNER REFERENCE MANUAL

Description

FEATURED

End of life (EOL) – See related product replacements below

  • Cost-effective
  • Very compact dimensions
  • Direct and 90° reading window models for smart mounting
  • Wide reading field at a short reading distance
  • Motor on/off control via software commands
  • Dual serial interface
  • Scanning speed up to 500 scans/s
  • Light weight (< 100g / 3.53 oz. without cable)
  • IP65 (NEMA 4) protection class

Summary

DESIGN

The Datalogic DS1100 is ideal for use in chemical and biomedical analysis machines, pharmaceutical code analyzers, automatic teller machines, printing systems, video rental and film processing machines. It can also be used on assembly lines, as well as simple work in progress and quality control applications.

ADVANTAGES

Extended product applicability in high throughput processes thanks to a scanning speed up to 500 scans/s

Excellent performance on high resolution codes with reduced minimum reading distance

The motor can be switched on and off via software commands depending on application needs

Allows flexible installation thanks to compact dimensions and direct/90° reading window options

SUITABLE APPLICATIONS

  • OEM integration in automatic machines
  • Chemical and biomedical analysis machines
  • Document handling machines
  • Print & Apply systems
  • ATM (Automatic Teller Machines)

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    Code 2/5, Code39, Code93, Code128, EAN/UPC, EAN128, Codabar, Pharmacode
  • Multilabel Readings:
    Up to 6 different symbologies during the same reading phase
  • Laser Classification:
    IEC 825-1 Class2; CDRH Class II

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    Main port RS485 Half Duplex up to 115.2 Kbit/s
    Auxiliary port RS232 up to 115.2 kbps
  • Digital Inputs:
    Two SW programmable (NPN only)
  • Digital Outputs:
    Two SW programmable, event driven
  • Device Programming:
    Windows™ based SW (WinHost™) via serial link
    Serial Host Mode Programming sequences
  • Operating Mods:
    ‘On-line’, ‘Serial On-line’, ‘Automatic’, ‘Test’, ‘Verifier’

PHYSICAL CHARACTERISTICS

  • Dimensions:
    80 x 50 x 22 mm (3.15 x 1.97 x 0.89 in.)
  • Weight:
    <100 g (<3.53 oz.) without cable
  • Case Material:
    Magnesium (body) + Polycarbonate (cover)
  • Operating Temperature:
    0 to 45°C (32 to 113 °F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Vibration Resistance:
    IEC 68-2-6 test FC 1.5mm; 10 to 55 Hz; 2 hours on each axis
  • Shock Resistance:
    IEC 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis
  • Light Source:
    Visible laser diode (630 to 680 nm)
  • Protection Class:
    IP65
  • Scanning Speed:
    500 scans/sec (SW programmable)
  • Max. Resolution:
    DS2200-11×0: Up to 0.15 mm (6 mils)
    DS2200-21×0: Up to 0.076 mm (3 mils)
  • Max. Reading Distance:
    DS2200-11×0: Up to 220 mm on 0.60 mm (24 mils) codes
    DS2200-21×0: Up to 125mm on 0.20 mm (8 mils) codes
  • Max. Depth of Field:
    DS2200-11×0: Up to 170 mm on 0.60 mm (24 mils) codes
    DS2200-21×0: Up to 85 mm on 0.20 mm (8 mils) codes
  • Aperture Angle:
    DS2200-11×0: 52 degrees
    DS2200-21×0: 62 degrees
  • Laser Control:
    Safety system to turn laser off in cases of motor slowdown or failure
  • Power Supply:
    5 VDC (4 to 30 VDC with converter)
  • Power Consumption:
    2 W max

Reading Diagrams

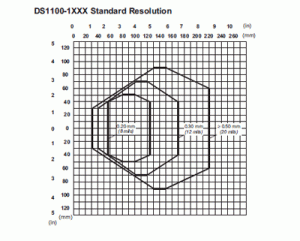

DS1100_1

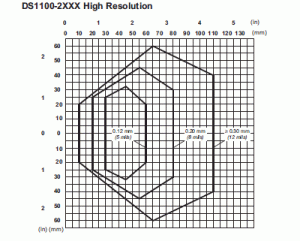

DS1100_2
