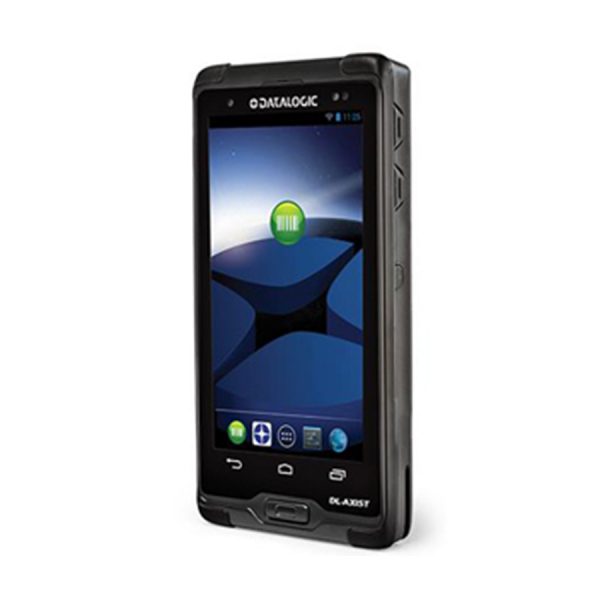

The Datalogic DL-Axist™ PDA is a rugged PDA with Android™ and a brilliant full touch 5-inch screen. With industrial robustness, this PDA survives most any indoor or outdoor environment. This PDA has a Corning® Gorilla® Glass 3 touchscreen and scan window; the optional protective rubber boot delivers additional protection.
Datalogic’s SoftSpot technology for innovative triggeringthrough touch display
Ruggedized with 1.8 m / 6.0 ft drop to concrete resistancewith a rubber boot and IP67 sealing
Audio jack for headsets or mobile POS solutions
Device and browser lockdown pre-licensed
EASE OF CARE Service Plans offer a wide range of service optionsto protect your investment, ensuring maximum productivity and ROI
Summary
DATALOGIC RUGGED EXPERTISE MEETS ANDROID™… IN A FULL TOUCH 5” PDA!
The Datalogic DL-Axist™ PDA combines the latest technologies and user friendly experience in a complete package. An appealing look and feel and a brilliant full touch 5 inch HD screen are combined with industrial robustness to survive indoor and outdoor usage.
DATA CAPTURE
The Datalogic DL-Axist PDA is equipped with an advanced 2D imager allowing quick and easy data capture from high-density codes to the standard range distances, along with Datalogic’s patented ‘Green Spot’ technology for good-read feedback. For applications requiring evidence of task execution or damaged documentation, a 5 MP Autofocus camera with a built-in LED flash provides easy documentation with photos.
Datalogic’s SoftSpot™ technology is a user-definable ‘floating soft trigger’ to leverage the large touch display, allowing a new triggering experience for the user!
WIRELESS COMMUNICATIONS
The Datalogic DL-Axist PDA leverages five embedded wireless technologies: Wi-Fi 802.11 a/b/g/n Cisco CCXv4 certified for quick network access and with superior MIMO technology (ensures higher throughput and better coverage), 3G/4G for real-time wide area voice and data coverage, Enterprise Class Assisted GPS (A-GPS) for location based applications, Bluetooth® wireless technology v4 for fast and low power consuming data connections and NFC for easy and intuitive configuration and pairing.
DATALOGIC ‘RUGGED MOBILITY’ WITH ANDROID
The Datalogic DL-Axist PDA integrates an Android operating system (the leading OS for mobile devices) complimented by a suite of tools enabling Enterprise level security, fast deployment and easy management, thus helping to maximize the users’ ROI.
INDUSTRY-APPLICATIONS
Retail
Manufacturing
Healthcare
Hospitality
Entertainment
Library Management
Access Control
Specifications
PHYSICAL CHARACTERISTICS
Dimensions:
15.7 x 8.0 x 1.9 cm / 6.2 x 3.1 x 0.7
Display:
5 inch TFT HD
Max Resolution:
1280 x 720
Weight:
With Standard Battery: 350.0 g / 12.3 oz
With Hi-Capacity Battery: 400.0 g / 14.1 oz
Battery:
Removable battery pack with rechargeable
Li-Ion batteries. Standard: 3.8 V; 3200 mAh (11.8
Watt-hours), ships with Wi-Fi models only;
Extended: 3.8 V; 6400 mAh (23.6 Watt-hours);
ships with WWAN Models
Camera:
Resolution: 5 megapixel;
Illumination: User controllable LED flash;
Lens: Autofocus
ENVIRONMENTAL
Drop Resistance:
Withstands drops from 1.8 m / 6.0 ft onto concrete (with rubber boot)
Withstands drops from 1.2 m / 4.0 ft onto plywood (without rubber boot)
Particulate and Water Sealing:
IP67
Temperature:
Operating: -20 to 50 ºC / -4 to 122 ºF
Storage/Transport: -30 to 70 ºC / -22 to 158 ºF
WIRELESS COMMUNICATION & SYSTEM
Local Area Network (LAN):
TI 802.11 a/b/g/n Cisco CCX v4 certified;
Supporting MIMO for higher throughput and
coverage; Frequency range: Country dependent,
typically 2.4 GHz and 5.2 GHz bands
Personal Area Network (PAN):
Bluetooth wireless technology v4.0 (IEEE 802.15)
Wide Area Network (WWAN):
3G/4G (HSPA+): 850/900/1800/1900/2100 MHz
for voice and data communication;
SIM socket user accessible; Approved PTCRB/
AT&T
Expansion Slots:
1x Mini USB 2.0 On-The-Go (OTG)1x Micro SD Card Slot (up to 32GB)
Memory:
System RAM: 1 GB;
eMMC Flash: 8 GB
Microprocessor:
OMAP 4430 @ 1 GHz Dual Core
Operating System:
Android v4.1 (v4.4 coming soon as a free update)
Real-Time Clock:
Time and date stamping under software control
