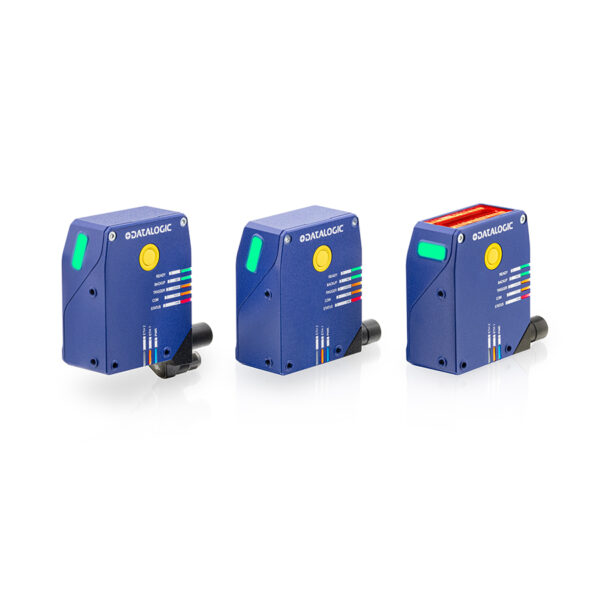

Blade Series is the new generation of Compact Industrial 1D Readers designed for lean integration, simple installation and reduced maintenance. Blade represent the R-Evolution of heroic DS2X000 Series

Datalogic Blade Series Datasheet

Description

FEATURED

Power Of Imaging

Camera sensor 2000 x 128 pixels and innovative lighting system
Improved reliability, increased reading performances on poor quality labels and 50% reduction of models

Lean Integration

Small size, various fixing points and embedded flexibility allows different positions and orientations
Smooth transition from DS2X00 to Blade ensured through same mechanical dimensions, positioning and performance

Simple Installation: FIX-PLUG-GO

FIX is easy, every needed position/angle is supported by multiple fixing point

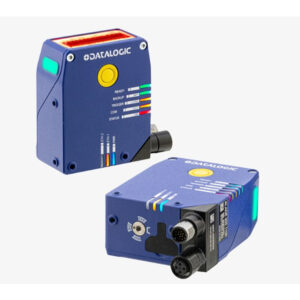

PLUG M12 connectors for both I/O and Networking. Three options available: single port TCP/IP ETHERNET plus Legacy RS-232, Double PORT PROFINET and Double Port ETHERNET/IP
GO: switch on and BLADE is ready to start. No image calibration needed. Blade is configured via DL.CODE, the standard tool for Matrix Series

Reduced Maintenance

Elimination of moving parts: full electronics components will improve product lifetime and reduce total cost of ownership
In case of replacement configuration backup/restore is available both over the Network and locally via the new MicroSDCard slot
Complete Monitoring options are offered: embedded WebMonitor (same as Matrix Series) freely accessible and connection to WebSentinel Plus ecosystem

Summary

Cutting edge traceability with Blade, revolutionary compact 1D reader

Blade Series is the new generation of Compact Industrial 1D Readers designed for lean integration, simple installation and reduced maintenance. Blade represent the R-Evolution of heroic DS2X000 Series:

Revolution: Blade is adopting Imaging technology (no laser, no moving parts, all electronics) ensuring maximum reading performances over 1D barcodes and unsurpassed reliability.
Evolution: Blade is fully backward compatible in terms of mechanical installation and reading coverage (distance, barcode resolution, connectivity) with DS2x00.

Blade models provide ready-to-use, cutting edge solutions supporting a variety of Traceability applications in OEM, Factory and Warehousing Automation, whenever 1D barcodes are in use.

Main Sub-Industry targets are Packaging (Pharma, Food & Beverage) and Intralogistics (Warehouse Automation and general Intralogistics).

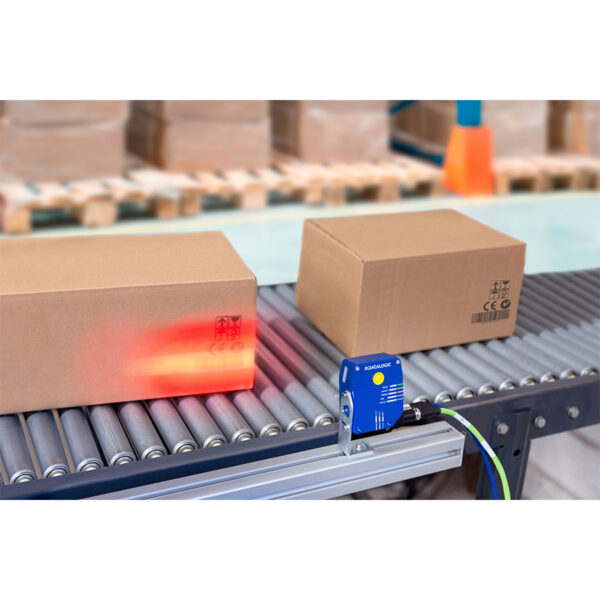

Main applications: Tote Routing, primary and secondary packaging traceability, end of line traceability/sorting. The Series is made of two product versions, Blade 100 and Blade 200, offering increasing reading power and flexibility to efficiently match different application needs.

SUITABLE APPLICATIONS

Automatic warehouses
General intralogistics

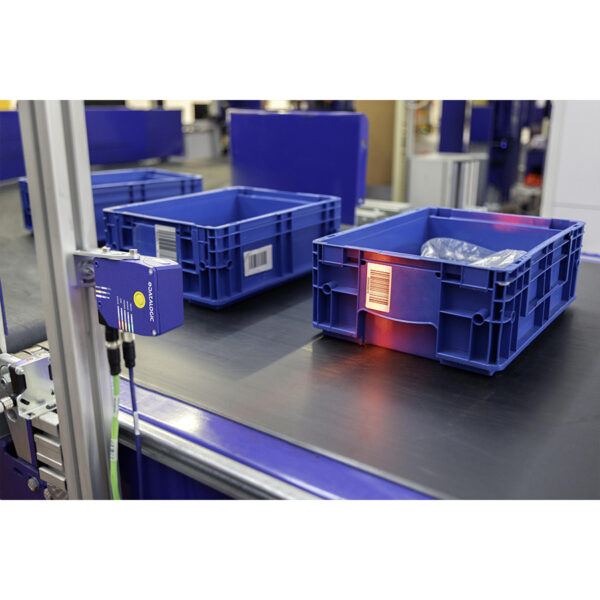

Tote routing
Factory automation
Automatic picking systems
Process control and packaging traceability (Pharma, Food & Beverage)
Print & Apply systems
End of line traceability/sorting

Specifications

Technical Data

Reading Distance (Min/Max):
Blade 100
-X1XX Models: 40 – 320 mm / 1.57 – 12.6 in
-X2XX & X3XX Models: 40 – 320 mm / 1.57 – 12.6 in
Blade 200
-X1XX Models: 40 – 600 mm / 1.57 – 23.62 in
-X2XX & -X3XX Models: 40 – 600 mm / 1.57 – 23.62 in
Max Resolution:
Blade 100
-X1XX Models: up to 0.1 mm (3.94 mils)
-X2XX & X3XX Models:up to 0.1 mm (3.94 mils)
Blade 200
-X1XX Models: up to 0.1 mm (3.94 mils)
-X2XX & -X3XX Models: up to 0.1 mm (3.94 mils)
Frame Rate:
Blade 100
-X1XX Models: 270 frames per second
-X2XX & X3XX Models: 270 frames per second
Blade 200
-X1XX Models: 270 frames per second
-X2XX & -X3XX Models: 270 frames per second
Aperture Angle:
Blade 100
-X1XX Models: 47°
-X2XX & X3XX Models: 47°
Blade 200
-X1XX Models: 47°
-X2XX & -X3XX Models: 47°
Readable Codes:
Blade 100
-X1XX Models: Code I2 of 5, Code 39, Code 93, Code 128, EAN/UPC, GS1 128 (EAN 128), Codabar, Pharmacode, Plessey, ISBT128
-X2XX & X3XX Models: Code I2 of 5, Code 39, Code 93, Code 128, EAN/UPC, GS1 128 (EAN 128), Codabar, Pharmacode, Plessey, ISBT128
Blade 200
-X1XX Models: Code I2 of 5, Code 39, Code 93, Code 128, EAN/UPC, GS1 128 (EAN 128), Codabar, Pharmacode, Plessey, ISBT128
-X2XX & -X3XX Models: Code I2 of 5, Code 39, Code 93, Code 128, EAN/UPC, GS1 128 (EAN 128), Codabar, Pharmacode, Plessey, ISBT128
Case Material:
Blade 100
-X1XX Models: Aluminum
-X2XX & X3XX Models: Aluminum
Blade 200
-X1XX Models: Aluminum
-X2XX & -X3XX Models: Aluminum
Dimensions (Typical Value):
Blade 100
-X1XX Models: 104 x 68.5 x 38.5 mm
(conn .0°)
-X2XX & X3XX Models: 104 x 86 x 38.5 mm
(conn .0°)
Blade 200
-X1XX Models: 104 x 68.5 x 38.5 mm
(conn .0°)
-X2XX & -X3XX Models: 104 x 86 x 38.5 mm
(conn .0°)
Weight:
Blade 100
-X1XX Models: 310 g / 10.93 oz
-X2XX & X3XX Models: 310 g / 10.93 oz
Blade 200
-X1XX Models: 310 g / 10.93 oz
-X2XX & -X3XX Models: 310 g / 10.93 oz
Temperature Range:
Blade 100
-X1XX Models: 0° – 50 °C / 32 – 122 °F
-X2XX & X3XX Models: 0° – 50 °C / 32 – 122 °F
Blade 200
-X1XX Models: 0° – 50 °C / 32 – 122 °F
-X2XX & -X3XX Models: 0° – 50 °C / 32 – 122 °F
Max Power Consumption:
Blade 100
-X1XX Models: 4.5 W
-X2XX & X3XX Models: 4.5 W
Blade 200
-X1XX Models: 5.5 W
-X2XX & -X3XX Models: 5.5 W
Voltage Supply/Power Consumption:
Blade 100
-X1XX Models: 10-30 VDC
-X2XX & X3XX Models: 10-30 VDC
Blade 200
-X1XX Models: 10-30 VDC
-X2XX & -X3XX Models: 10-30 VDC
IP Rating:
Blade 100
-X1XX Models: IP65
-X2XX & X3XX Models: IP65
Blade 200
-X1XX Models: IP65
-X2XX & -X3XX Models: IP65
Embedded Communication Interfaces:
Blade 100
-X1XX Models: Ethernet TCP/IP
Main port RS-232
Auxiliary port RS-232
-X2XX & X3XX Models: Dual Port Profinet,
conformance Class B
(-X3XX) or Dual Port
Ethernet-IP (-X2XX)
Blade 200
-X1XX Models: Ethernet TCP/IP
Main port RS-232/RS-422/
RS-485
Auxiliary port RS-232
-X2XX & -X3XX Models: Dual Port Profinet,
conformance Class B
(-X3XX) or Dual Port
Ethernet-IP (-X2XX)
Digital Inputs:
Blade 100
-X1XX Models: 2 Inputs
(optocoupled, NPN/PNP)
-X2XX & X3XX Models: 1 Input
(optocoupled, NPN/PNP)
Blade 200
-X1XX Models: 2 Inputs
(optocoupled, NPN/PNP)
-X2XX & -X3XX Models: 1 Input
(optocoupled, NPN/PNP)
Digital Outputs:
Blade 100
-X1XX Models: 2 Outputs
-X2XX & X3XX Models:
Blade 200
-X1XX Models: 2 Outputs
-X2XX & -X3XX Models:
Id-Net™ Interface:
Blade 100
-X1XX Models: ✓
-X2XX & X3XX Models:
Blade 200
-X1XX Models: ✓
-X2XX & -X3XX Models
Xpress Interface™:
Blade 100
-X1XX Models: ✓
-X2XX & X3XX Models: ✓
Blade 200
-X1XX Models: ✓
-X2XX & -X3XX Models: ✓
Device Programming:
Blade 100
-X1XX Models: DL.Code
-X2XX & X3XX Models: DL.Code
Blade 200
-X1XX Models: DL.Code
-X2XX & -X3XX Models: DL.Code
