Specifications

Print Specifications

• Print Method:
  Direct Thermal & Thermal Transfer
• Printing Resolution:
  203 dpi (8 dots/mm)
• Print Speed:
  Max. 6 ips
• Print Length:
  Max. 100″(2540 mm)
• Print Width:
  Max. 4.13″(105 mm)
• Memory:
  32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
• CPU Type:
  32 bit RISC microprocessor

CONSUMABLES SPECIFICATIONS

• Sensors:
  Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
• Media Type:
  Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
• Media:
  Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core
• Ribbon:
  Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length:max 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)

FONTS & SYMBOLOGIES

• Fonts:
  Internal character sets standard
  5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
  Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation
  Soft fonts are downloadable
  Ability to print any Windows True Type font easily. Support scalable font
• 1D Barcodes:
  UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
• 2D Barcodes:
  QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
• Graphics:
  PPLA: PCX, BMP, IMG, HEX, GDI
  PPLB: PCX, BMP, Binary raster, GDI
  PPLZ: GRF, Hex, GDI
• Emulation:
  PPLA, PPLB, PPLZ

INTERFACE CHARACTERISTICS AND INTEGRATION

• Operational Interface:

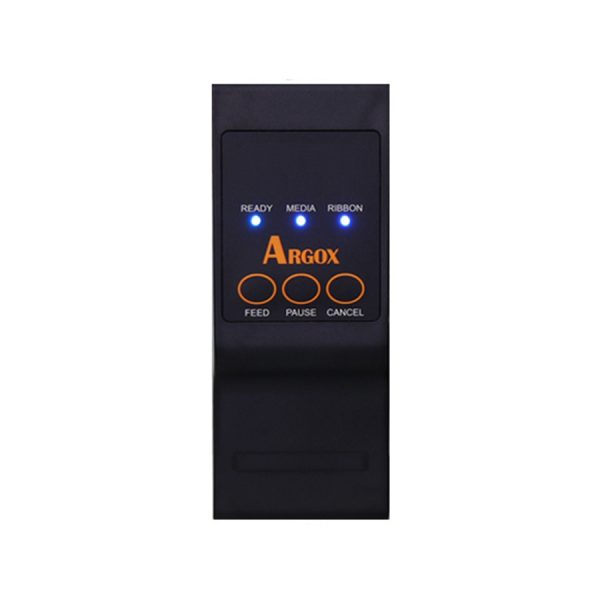

  LED indicator x 3, Button x 3
• Communication Interface:
  USB device, RS-232, Ethernet, USB Host x 2
• Real-Time Clock (RTC):
  N/A
• Software-label Editing:
  Windows Driver for Windows XP(iX4-250 only)/Vista/Win7/Win8/Win10, BarTender® from Seaguall Scientific
• Software-Utility:
  Printer Tool
• Database Link:
  Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

OPERATING & ENVIRONMENT CHARACTERISTICS

• Power Source:
  Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
• Operation Environment:
  Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C)
• Agency Listing:
  CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI

PHYSICAL CHARACTERISTICS

• Printer Dimensions:
  W 257 mm x H 263 mm x D 432 mm
• Printer Weight:
  29lbs (13kg)
